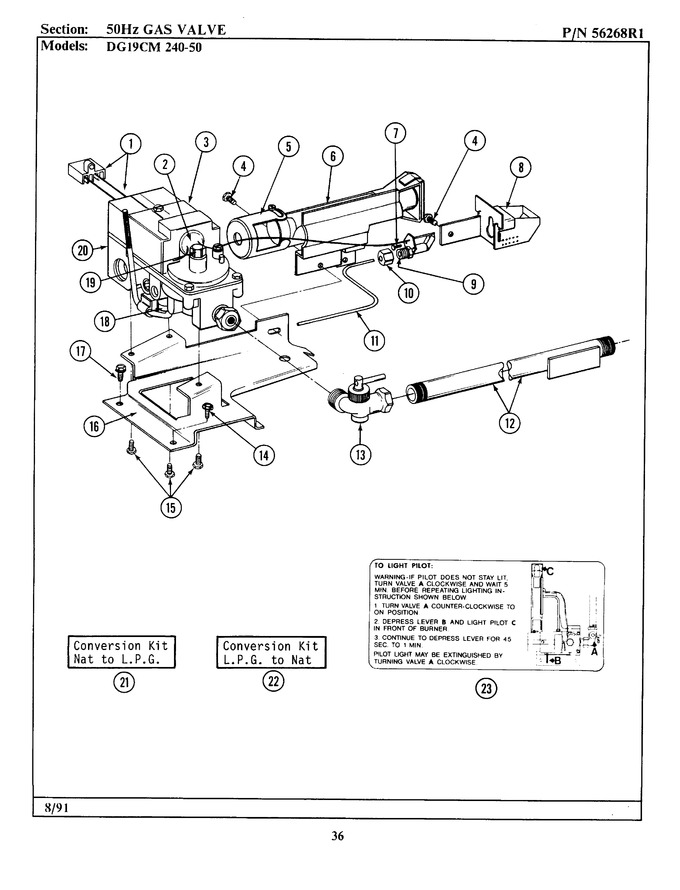

10 - Gas Valve


11 - 50hz Gas Valve


12 - Cabinet-rear


13 - Door


14 - 50hz Conversion List


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	Y302812		Main Burner Solenoid	00	Appelez-nous	-
001	Y302813		Main Burn. Solenoid (240-50)	00	Appelez-nous	-
002	NLA		Pilot W/pressure Switch	00	Appelez-nous	-
003	NLA		Orifice, Main Burner	00	Appelez-nous	-
003	Y311639		Orifice, Main Burner	00	Appelez-nous	-
004	Y014872		Screw, No.10 X 3/8	00	Appelez-nous	-
005	NLA		Air Shutter	00	Appelez-nous	-
006	Y304697		Burner Assembly	00	Appelez-nous	-
007	Y311711		Screw	00	Appelez-nous	-
008	NLA		Pilot Shield Assembly	00	Appelez-nous	-
009	NLA		Pilot Orifice (mfg.)	00	Appelez-nous	-
009	Y311418		Pilot Orifice	00	Appelez-nous	-
009	Y311480		Pilot Orifice (lp)	00	Appelez-nous	-
009	Y311482		Pilot Orifice (lp)	00	Appelez-nous	-
010	310692		Compression Nut	00	Appelez-nous	-
010	Y310693		Compression Sleeve	00	Appelez-nous	-
011	Y312483		Pilot Tube	00	Appelez-nous	-
012	Y303383		Pipe & Bracket Assy.	00	Appelez-nous	-
013	Y303349		Shut-off, Gas Valve	00	Appelez-nous	-
014	Y310632		Screw	00	Appelez-nous	-
015	NLA		Screw, Hex Hd No.8 X 3/8 Inch	00	Appelez-nous	-
016	NLA		Gas Control Bracket	00	Appelez-nous	-
017	NLA		Screw, Hex Hd No.8 X 3/8 Inch	00	Appelez-nous	-
018	NLA		Gasket, Pilot	00	Appelez-nous	-
019	NLA		Screw Assembly, Leak Limit	00	Appelez-nous	-
020	Y304698		Gas Valve (240-50)	00	Appelez-nous	-
021	NLA		Conversion Kit (nat.to Lpg)	00	Appelez-nous	-
022	301539		Conversion Kit (lp To Nat.)	00	Appelez-nous	-
023	NLA		Gas Burner Instruct Label	00	Appelez-nous	-
