Diagram for 05 - Gas Valve
05 - Gas Valve

Diagram for 06 - Gas Valve (50hz)
06 - Gas Valve (50hz)

Diagram for 07 - Motor Drive
07 - Motor Drive

Diagram for 08 - Motor Drive-thermostats
08 - Motor Drive-thermostats

Diagram for 09 - Rear View
09 - Rear View

Diagram for 10 - Tumbler-beige
10 - Tumbler-beige

Diagram for 11 - Tumbler-gray
11 - Tumbler-gray


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 Y302813 Main Burn. Solenoid 230-50 00 Appelez-nous -
1 Y302812 Main Burner Solenoid 00 Appelez-nous -
2 302814 Pilot With Pressure Switch 00 Appelez-nous -
3 311643 Orifice For Main Burner 00 Appelez-nous -
3 311640 Orifice For Main Burner 00 Appelez-nous -
3 Y311639 Orifice For Main Burner 00 Appelez-nous -
3 311641 Orifice For Main Burner 00 Appelez-nous -
4 Y014872 Screw, No.10 X 3/8 00 Appelez-nous -
5 311910 Air Shutter 00 Appelez-nous -
6 Y304697 Burner Assembly 00 Appelez-nous -
7 Y311711 Screw 00 Appelez-nous -
8 304699 Pilot Shield Assembly 00 Appelez-nous -
9 Y311480 Pilot Orifice (lp) 00 Appelez-nous -
9 Y311418 Pilot Orifice 00 Appelez-nous -
9 Y311482 Pilot Orifice-lpg 00 Appelez-nous -
9 311481 Pilot Orifice-mfg. 00 Appelez-nous -
10 Y310693 Compression Sleeve 00 Appelez-nous -
10 310692 Compression Nut 00 Appelez-nous -
11 Y312483 Pilot Tube 00 Appelez-nous -
12 Y303383 Pipe & Bracket Assy. 00 Appelez-nous -
13 Y303349 Shut-off, Gas Valve 00 Appelez-nous -
14 WP660533 Gas Control Bracket   (Replaces: 313965) 00 In-Stock Immediately $ 39.47

15 Y310632 Screw 00 Appelez-nous -
16 211410 Screw, Hex Hd No.8 X 3/8 Inch 00 Special Order $ 6.64

17 Y313561 Screw----na 00 Special Order $ 5.27

18 810146 Screw 00 Appelez-nous -
18 312488 Gasket For Pilot 00 Appelez-nous -
19 302809 Screw Assembly - Leak Limit 00 Appelez-nous -
19 302810 Screw Assm - Blue Block Ope 00 Appelez-nous -
20 Y304698 Gas Valve (240-50) 00 Appelez-nous -
20 304707 Gas Valve 120-50 00 Appelez-nous -
21 301456 Conversion Kit-nat. To Lpg 00 Appelez-nous -
22 301539 Conversion Kit-lpg To Nat. 00 Appelez-nous -
23 WP660532 Gas Burner Instruct Label   (Replaces: 313967) 00 In-Stock Immediately $ 36.90

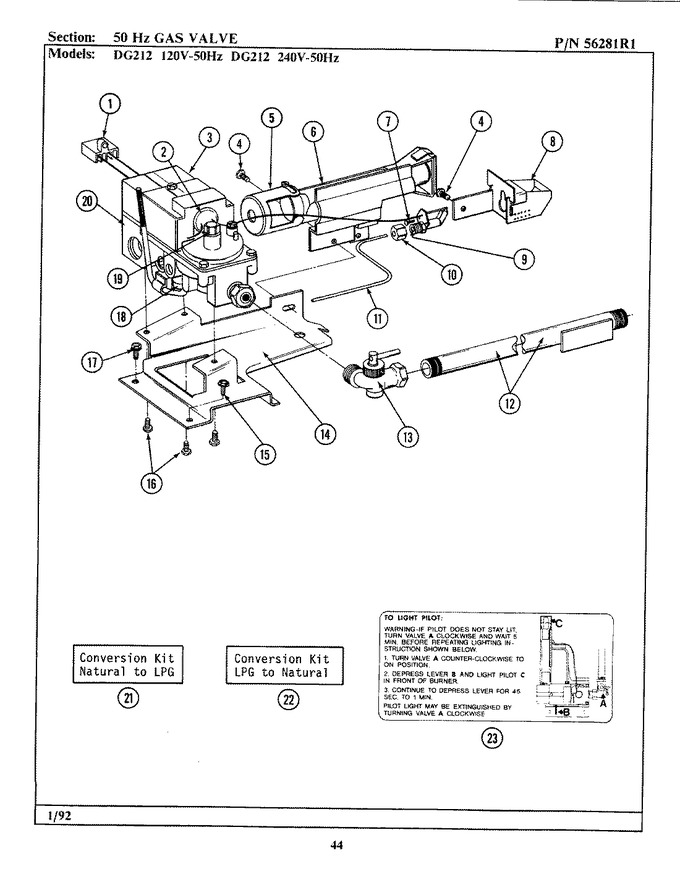

    View Diagram in Separate Window     Print Icon   Print Part List
