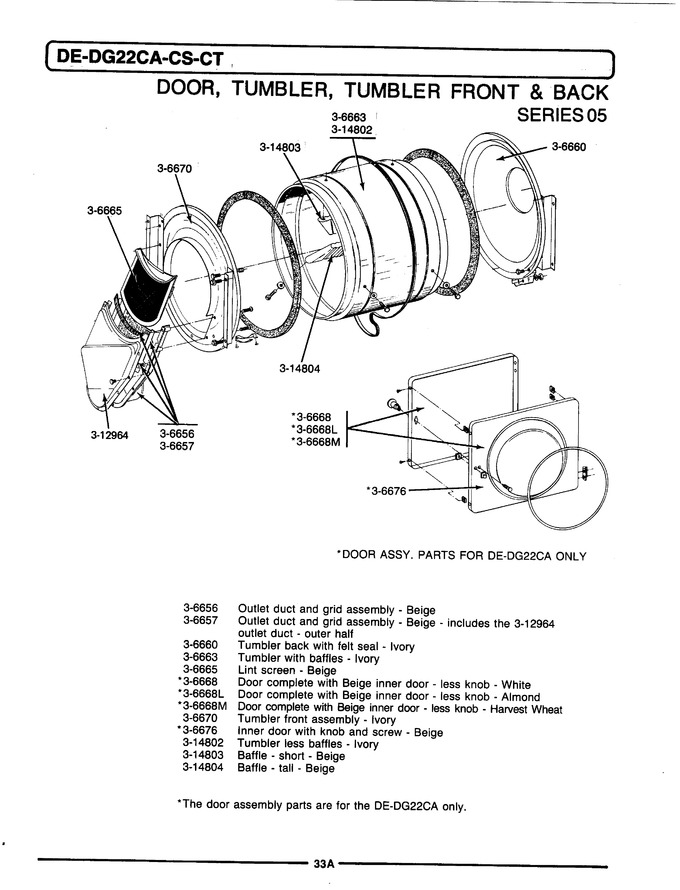

Diagram # Part Number Description Series Availability Ships Price Add to Cart
001 306656 Outlet Duct & Grid Assembly 05 Appelez-nous -
002 306657 Outlet Duct & Grid 05 Appelez-nous -
003 Y306660 Tumbler Back 05 Appelez-nous -
004 306663 Tumbler W/baffles 05 Appelez-nous -
005 WP33001003 Lint Screen   (Replaces: Y306665) 05 In-Stock Immediately $ 43.47

006 Y306668 Door 05 Appelez-nous -
007 NLA Tumbler Front----na 05 Appelez-nous -
008 NLA Inner Door W/knob 05 Appelez-nous -
009 314802 Tumbler W/out Baffles 05 Appelez-nous -
010 314803 Baffle (short) 05 Appelez-nous -
011 33001004 Baffle (tall)   (Replaces: 314804) 05 Special Order $ 133.20
