SELECT A DIAGRAM

Diagram for 01 - Ct Control Panel
01 - Ct Control Panel

Diagram for 02 - Ct Control Panel/timer
02 - Ct Control Panel/timer

Diagram for 03 - Ct Control Center Components
03 - Ct Control Center Components

Diagram for 04 - Front View
04 - Front View

Diagram for 05 - Rear View
05 - Rear View

Diagram for 06 - Front Panel & Door Assembly
06 - Front Panel & Door Assembly

Diagram for 07 - Lint Screen, Tumbler (front & Back)
07 - Lint Screen, Tumbler (front & Back)

Diagram for 08 - Inlet Duct, Gas Valve, Cone & Extension
08 - Inlet Duct, Gas Valve, Cone & Extension

Diagram for 09 - Motor, Blower, Base Frame & Thermostats
09 - Motor, Blower, Base Frame & Thermostats

Diagram for 10 - 50hz Gas Valve
10 - 50hz Gas Valve


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
001 205810 Wire, Ground 00 Appelez-nous -
002 WP489399 Screw   (Replaces: 211252) 00 Special Order $ 6.26

003 WP90767 Screw   (Replaces: 211294) 00 In-Stock Immediately $ 7.04

004 WP90767 Screw   (Replaces: 212276) 00 In-Stock Immediately $ 7.04

005 WP1163283 Screw, No.8 X 1/2 Inch   (Replaces: 212277) 00 Special Order $ 6.47

006 212949 Screw 00 Appelez-nous -
007 212950 Screw, Relay Switch To Brkt 00 Special Order $ 46.94

008 212951 Screw, No.6-32 X 1/4 Inch 00 Appelez-nous -
009 215003 Fastener 00 Appelez-nous -
010 WP215564 Lens, Indicator (amber)   (Replaces: 215564) 00 In-Stock Immediately $ 7.14

011 NLA Pilot Light 00 Appelez-nous -
012 Y303787 Switch For Relay 00 Appelez-nous -
013 Y305191 Top Cover-white 00 Appelez-nous -
014 NLA Top Cover-almond 00 Appelez-nous -
015 NLA Top Cover-harvest Wheat 00 Appelez-nous -
016 NLA Control Cover (wht) 00 Appelez-nous -
017 NLA Control Cover Assy----na 00 Appelez-nous -
018 NLA Control Cover Assy 00 Appelez-nous -
019 306938 Knob, Selector Switch 00 Appelez-nous -
020 WPW10327105 Switch, Cycle Selector   (Replaces: 307237) 00 Special Order $ 145.49

021 WPW10149462 Switch, Push-to-start   (Replaces: 306941) 00 Special Order $ 60.77

022 NLA Main Wire Harness - Dg 00 Appelez-nous -
025 Y312702 Knurled Nut 00 Special Order $ 18.18

026 Y312706 Hex Nut On Switch 00 Appelez-nous -
027 WPW10139799 Lock Washer   (Replaces: 312751) 00 Special Order $ 8.32

028 WP488234 Screw   (Replaces: Y313588) 00 Special Order $ 6.07

029 Y314322 Screw, No.8-32 X 3/8 Inch 00 Appelez-nous -
030 NLA Control Panel Commercial Dryer 00 Appelez-nous -
031 314912 Back-up Plate - White 00 Appelez-nous -
032 NLA Back Up Plate-almond 00 Appelez-nous -
033 NLA Back Up Plate-harvest Wheat 00 Appelez-nous -
034 NLA Spring Lever For Relay 00 Appelez-nous -
035 NLA Relay Bracket 00 Appelez-nous -
036 NLA Spacer For Advance Relay 00 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

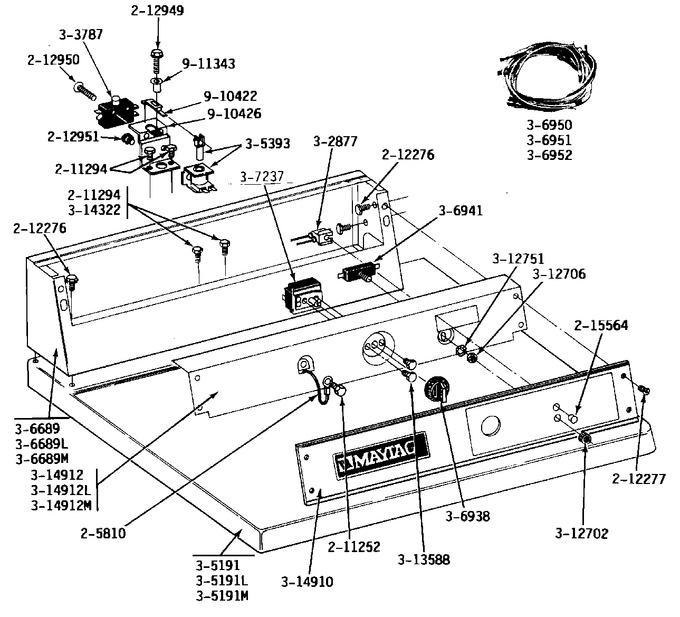

Diagram for LDG24CT
