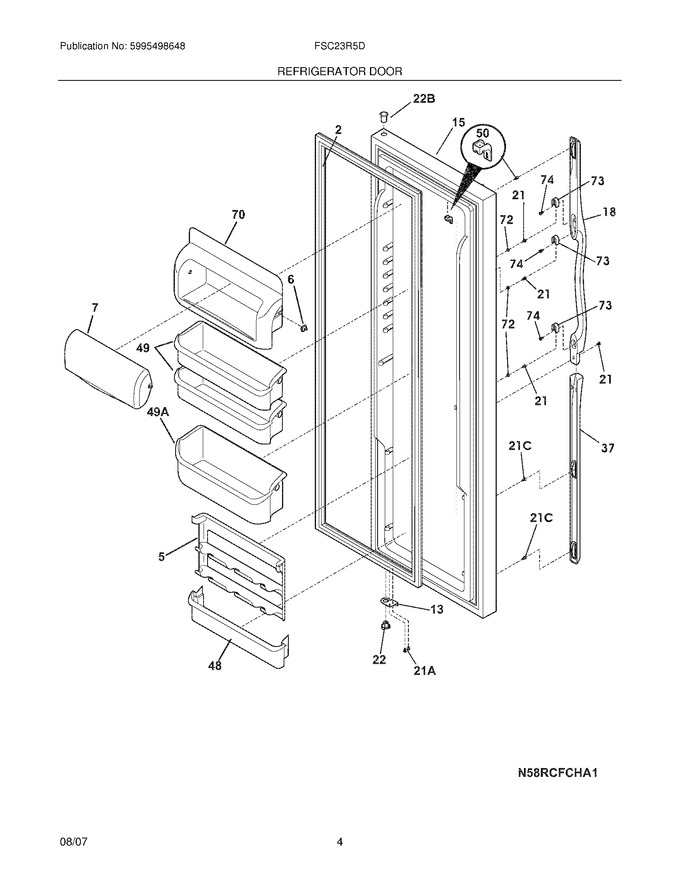

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	241516101		Rack-can				$ 73.40
6	241515901		Lug-dairy Compartment				$ 42.47
7	241515606		Door-dairy   (Replaces: 241515601)				$ 40.96
13	240581905		Door Stop,black ,ref				$ 60.25
15	241534525		Door-refr,stainless ,complete Assy				$ 380.88
18	241711702		Handle-door,black		Appelez-nous	-
21	218781101		Screw,pan Head ,8-18 X 0.625				$ 15.60
22	240328203		Bearing-hinge,black ,closer			Immediately	$ 27.23
37	241711602		Trim-handle,30.13`` ,black ,lower		Appelez-nous	-
48	241511706		Bin-door,ref				$ 72.18
49	241505306		Bin-door,2-liter				$ 72.18
50	241508401		Cover-magnet				$ 88.93
70	241515801		Compartment-dairy,removable				$ 177.89
72	240421701		Button-handle Mtg,dovetail				$ 14.81
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 45.36
74	215503204		Screw,cr Pan Hd ,10-16				$ 14.96
21A	5303323137		Screw,10-32 X 1/2   (Replaces: 240598402)				$ 11.88
21C	240521304		Screw,no.8-18 X 3/4				$ 11.08
22B	240328404		Bearing-hinge,black ,upper				$ 22.87
49A	241505506		Bin-door				$ 89.85
F2	241510207		Gasket-refr Door,black ,magnetic   (Replaces: 241510203)			Immediately	$ 97.14
NI	218490901		Cleaner,stainless Steel				$ 5.58
