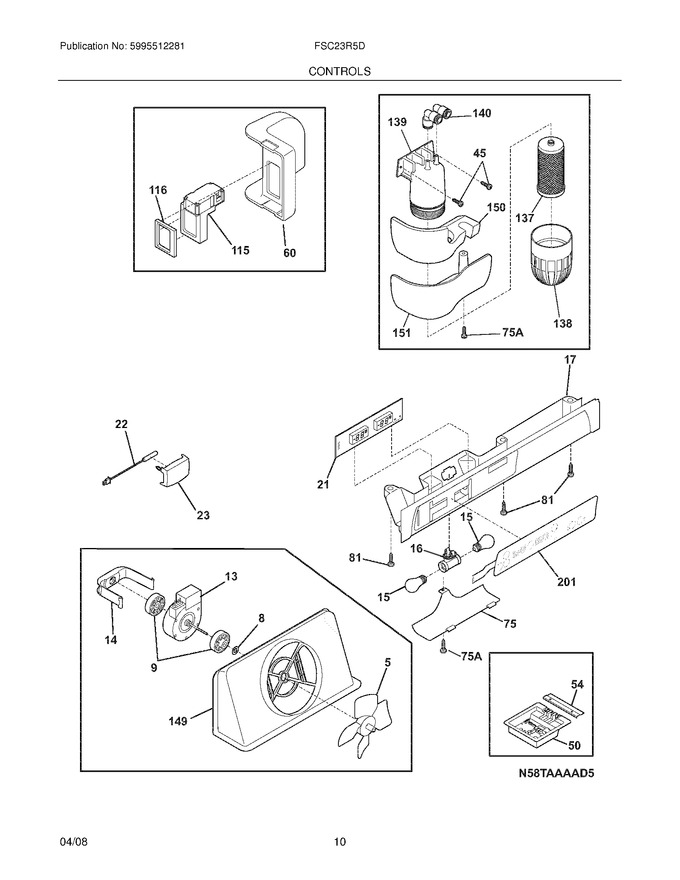

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 8 | 215474201 | Washer,``slinger`` ,nylon ,evap Fan Shaft |
|
Immediately | $ 18.43 | ||||
| 9 | 241518301 | Bushing,motor Mounting |
|
$ 66.63 | |||||
| 13 | 809069220 | Motor,evaporator Fan (Replaces: 241509402) |
|
Immediately | $ 154.14 | ||||
| 14 | 242135301 | Clip,evap Fan Motor (Replaces: 241517701) |
|
$ 7.79 | |||||
| 15 | 5304517886 | Light Bulb (Replaces: 241552801) |
|
Immediately | $ 73.06 | ||||
| 16 | 241622802 | Socket-light |
|
$ 65.93 | |||||
| 17 | 241522801 | Box-control,front |
|
- | |||||
| 22 | 240597220 | Sensor (Replaces: 240597203) |
|
Immediately | $ 5.16 | ||||
| 23 | 241512901 | Cover-sensor |
|
$ 83.49 | |||||
| 45 | 241500303 | Screw,hex Washer Head ,8-18ab X 0.500 |
|
Immediately | $ 4.55 | ||||
| 50 | 241511101 | Board-main Power |
|
$ 466.33 | |||||
| 54 | 241532401 | Channel |
|
$ 30.47 | |||||
| 60 | 241510301 | Diffuser-air |
|
$ 49.00 | |||||
| 75 | 241517802 | Shield-light |
|
$ 42.91 | |||||
| 81 | 218843801 | Screw,hx Wshr Hd Sems ,8-15a X 0.625 (Replaces: 5304455658) |
|
$ 14.41 | |||||
| 115 | 5303918899 | Damper,motorized (Replaces: 241518501) |
|
Immediately | $ 73.24 | ||||
| 116 | 241518601 | Seal-damper,foam |
|
$ 9.22 | |||||
| 138 | 240434401 | Cup-water Filter |
|
Immediately | $ 81.14 | ||||
| 138 | 218904301 | O-ring,wtr Filter Cup |
|
$ 13.46 | |||||
| 139 | 240434301 | Housing-water Filtr |
|
Immediately | $ 69.94 | ||||
| 140 | 240545201 | Elbow-water Tube |
|
$ 73.71 | |||||
| 149 | 241528304 | Seal,foam ,evap Fan Assy |
|
- | |||||
| 149 | 242204504 | Shroud-evap Fan Mtg (Replaces: 241517601) |
|
$ 38.68 | |||||
| 150 | 240394102 | Insulation-water Filter Cover |
|
$ 51.40 | |||||
| 151 | 240376002 | Cover-water Filter |
|
$ 55.91 | |||||
| 201 | 240598701 | Switch-membrane |
|
$ 250.37 | |||||
| 75A | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 , |
|
$ 14.18 | |||||
| F137 | 218710300 | Wrench-filter |
|
$ 4.54 | |||||
| F137 | 240389102 | Filter,water ,carbon Canister ,rear , |
|
- | |||||
| F21 | 240596804 | Control,electronic (Replaces: 240596802) |
|
$ 650.68 | |||||
| F5 | 5308000010 | Fan Blade,red ,evaporator Fan |
|
Immediately | $ 49.03 | ||||
| FNI | 241510802 | Harness-wiring (Replaces: 241510801) |
|
$ 41.81 | |||||
| NI | 241524802 | Seal,housing |
|
- | |||||
| NI | 241510501 | Seal-diffuser |
|
- | |||||
| NI | 241532501 | Clip-harness |
|
- |
