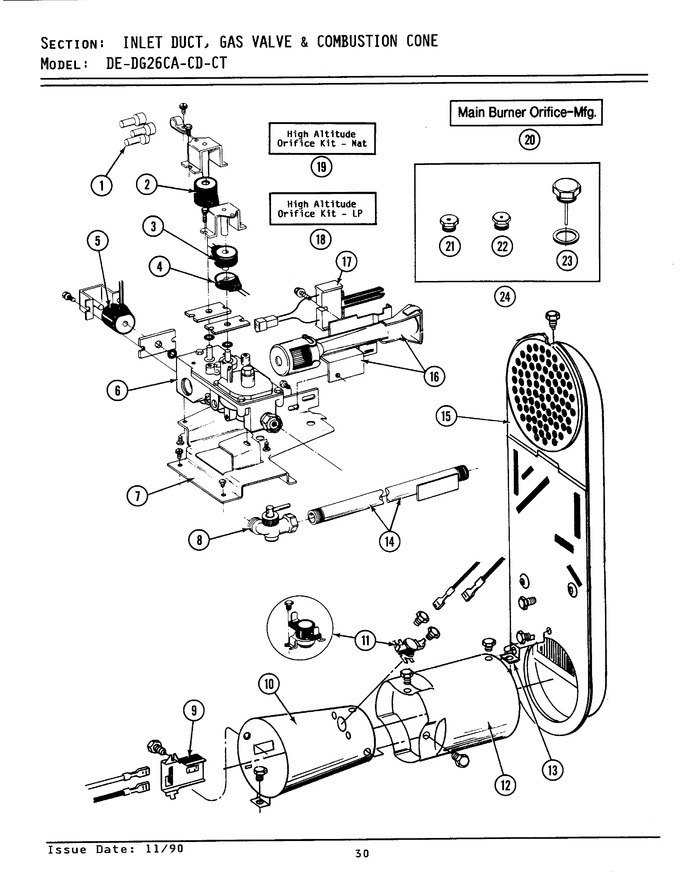

06 - Inlet Duct, Gas Valve & Combustion Cone


07 - Motor, Blower & Base Frame


08 - Thermostats


09 - Installation Accessories


10 - 50hz Gas Valve


11 - 50hz Conversion List


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	311546		Closed Connector		Appelez-nous	-
002	305603		Secondary Coil		Appelez-nous	-
003	305604		Holding Coil				$ 57.03
004	WP305605		Booster Coil   (Replaces: 305605)				$ 102.82
005	Y304626		Side Coil		Appelez-nous	-
006	NLA		Screw, Hex Hd No.8 X 3/8 Inch		Appelez-nous	-
006	Y303777		Gas Valve Assembly		Appelez-nous	-
007	312929		Gas Valve Bracket		Appelez-nous	-
007	Y313561		Screw----na				$ 5.27
007	Y310632		Screw		Appelez-nous	-
008	Y303349		Shut-off, Gas Valve		Appelez-nous	-
009	WP90767		Screw   (Replaces: 211294)			Immediately	$ 7.04
009	WP338906		Sensor, Radiant   (Replaces: Y303377)			Immediately	$ 46.72
010	WP90767		Screw   (Replaces: 211294)			Immediately	$ 7.04
010	Y303368		Cone, Combustion		Appelez-nous	-
010	Y308548		Cone, Combustion	A5	Appelez-nous	-
011	WP90767		Screw   (Replaces: 211294)			Immediately	$ 7.04
011	WP305169		Thermostat, Hi-limit Gas   (Replaces: 305169)				$ 117.03
012	Y303841		Cone, Extension (combustion)		Appelez-nous	-
013	WP90767		Screw   (Replaces: 211294)			Immediately	$ 7.04
013	Y312890		Retainer, Heater Chamber		Appelez-nous	-
014	Y303383		Pipe & Bracket Assy.		Appelez-nous	-
015	WP90767		Screw   (Replaces: 211294)			Immediately	$ 7.04
015	307119		Inlet Duct Assy.		Appelez-nous	-
016	WP33002793		Burner Assembly   (Replaces: 304974)				$ 161.35
016	Y310632		Screw		Appelez-nous	-
017	4391996		Igniter Assy, Gas Valve   (Replaces: 304970)			Immediately	$ 42.36
017	304971		Screw		Appelez-nous	-
018	NLA		Orifice Kit, Lp (high Alt.)		Appelez-nous	-
019	NLA		Orifice Kit, Nat (high Alt.)		Appelez-nous	-
020	NLA		Main Burner Orifice (mfg)		Appelez-nous	-
021	NLA		Main Burner Orifice (lp)		Appelez-nous	-
022	NLA		Internal Orifice (lp)		Appelez-nous	-
023	NLA		Screw Assy - Blue Block Ope		Appelez-nous	-
024	Y303779		Conversion Kit (nat.to Lp)		Appelez-nous	-
024	Y308377		Conversion Kit (lp To Natural)		Appelez-nous	-
