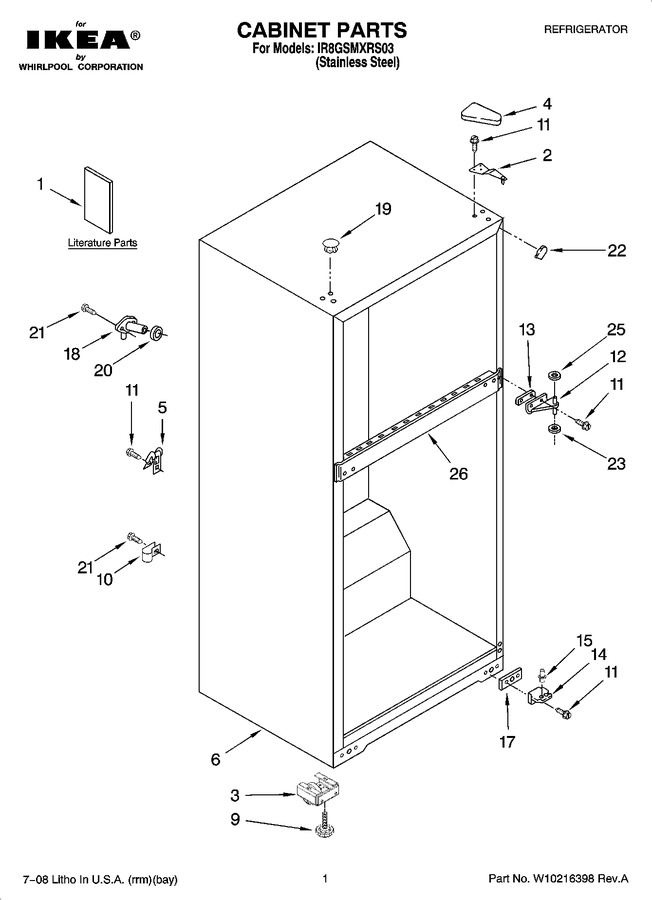

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Icemaker Parts
06 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2265208 | Service & Wiring Sheet |
|
- | |||||
| 1 | 628370 | Modular Icemaker Service Sheet |
|
- | |||||
| 1 | W10214131 | Use & Care Guide |
|
- | |||||
| 1 | W10187770 | Energy Label |
|
- | |||||
| 2 | WP2261963 | Hinge (top) (Replaces: 2261963) |
|
Immediately | $ 107.48 | ||||
| 3 | WPW10142530 | Roller, Front (Replaces: W10142530) |
|
Immediately | $ 106.29 | ||||
| 4 | WP2213363 | Cover, Hinge (Replaces: 2213363) |
|
Immediately | $ 17.21 | ||||
| 5 | 549193 | Clamp-cord |
|
$ 12.65 | |||||
| 9 | WPW10133299 | Leveler Screw 45mm (Replaces: W10133299) |
|
$ 11.12 | |||||
| 10 | WP488366 | Clamp, Tube (water Supply) (Replaces: 489385) |
|
$ 10.73 | |||||
| 11 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 12 | WP2166037 | Hinge, Center (Replaces: 2166086) |
|
$ 76.57 | |||||
| 13 | 2215385 | Shim, Hinge Center |
|
$ 82.21 | |||||
| 14 | WP2325482 | Hinge Butt (Replaces: 2325482) |
|
Immediately | $ 72.00 | ||||
| 15 | WP2325483 | Hinge-pin, Bottom (Replaces: 2325483) |
|
Immediately | $ 6.80 | ||||
| 17 | WP2201567 | Shim, Bottom Hinge (Replaces: 2201567) |
|
Immediately | $ 7.34 | ||||
| 18 | WP2196157 | Fitting,water Tube (Replaces: 2174760) |
|
Immediately | $ 11.33 | ||||
| 19 | WP2183998 | Hole Plug (6) (Replaces: 2183998) |
|
$ 17.11 | |||||
| 20 | WP1106508 | Seal Gasket (Replaces: 1106508) |
|
Immediately | $ 9.39 | ||||
| 21 | WP488729 | Screw (Replaces: 2262176) |
|
Immediately | $ 7.45 | ||||
| 22 | W11500943 | Corner Filler (Replaces: 2215384) |
|
$ 7.18 | |||||
| 23 | WP487802 | Washer (Replaces: 487802) |
|
Immediately | $ 7.32 | ||||
| 24 | WP487576 | Washer (Replaces: 487576) |
|
Immediately | $ 9.67 |
