SELECT A DIAGRAM

01 - Lint Screen, Tumbler (front & Back)


02 - Motor, Blower & Base Frame


03 - Thermostats


04 - Installation Accessories


05 - Front View


06 - Rear View


07 - Control Center Shroud


08 - Control Center

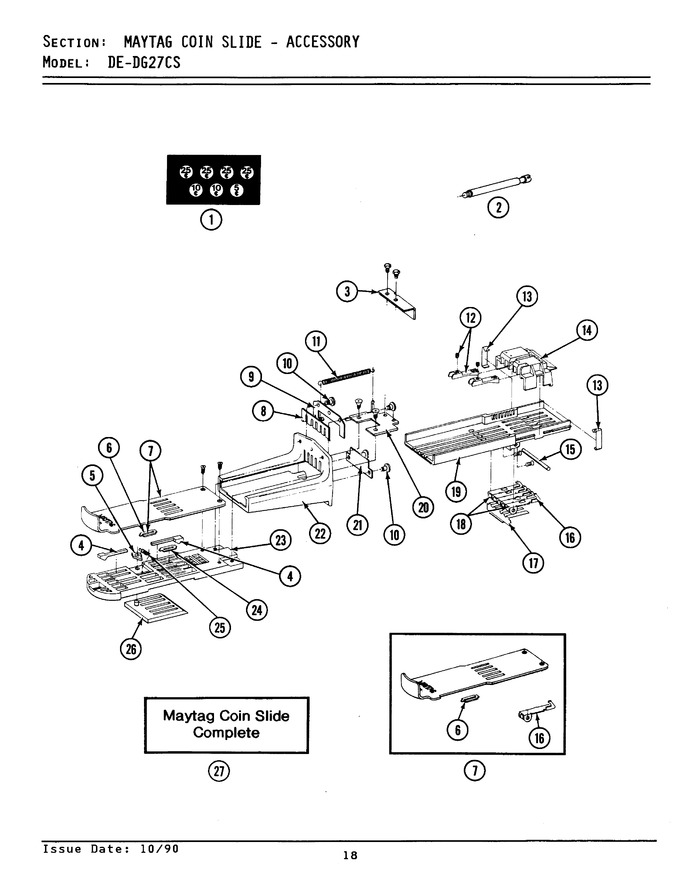

09 - Maytag Coin Slide-accessory


10 - Front Panel & Door Assembly


11 - Inlet Duct, Gas Valve & Combustion Cone


12 - 50hz Gas Valve


13 - 50hz Conversion List


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	214648		Coinage Decal	00	Appelez-nous	-
002	215559		Bolt, Locking	00			$ 5.25
002	NLA		Locking Bolt	00	Appelez-nous	-
003	W11684507		Screw   (Replaces: 212707)	00			$ 12.23
003	314334		Bracket For Coin Slide	00	Appelez-nous	-
004	NLA		Plug For Coin Opening	00	Appelez-nous	-
005	214572		Ratchet Arm	00			$ 44.31
006	NLA		Nickel Insert	00	Appelez-nous	-
007	214597		Screw	00	Appelez-nous	-
007	NLA		Slide Plate W/nickel Insert	00	Appelez-nous	-
008	214578		Gate For Coin Opening	00	Appelez-nous	-
009	NLA		Retainer For Gate	00	Appelez-nous	-
010	NLA		Stud For Coin Slide	00	Appelez-nous	-
011	214581		Return Spring	00	Appelez-nous	-
012	NLA		Movable Coin Gage	00	Appelez-nous	-
013	214589		Spring Clip	00			$ 12.50
014	NLA		Measuring Block Assembly	00	Appelez-nous	-
015	NLA		Pin For Lower Gage Arm	00	Appelez-nous	-
016	NLA		Lower Gage Arm	00	Appelez-nous	-
017	214596		Spring For Lower Gage Arm	00	Appelez-nous	-
018	205343		Lower Gage Arm Assembly	00	Appelez-nous	-
019	214594		Base Insert For Housing	00	Appelez-nous	-
019	214597		Screw	00	Appelez-nous	-
020	214597		Screw	00	Appelez-nous	-
020	NLA		End Bracket For Slide	00	Appelez-nous	-
021	NLA		Retainer For Gage Spring	00	Appelez-nous	-
022	214584		Housing For Coin Slide	00	Appelez-nous	-
023	NLA		Slide Body	00	Appelez-nous	-
024	NLA		Dime Insert	00	Appelez-nous	-
025	214582		Spring For Ratchet Arm	00	Appelez-nous	-
026	NLA		Stud For Coin Slide	00	Appelez-nous	-
027	NLA		Maytag Coin Slide	00	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
