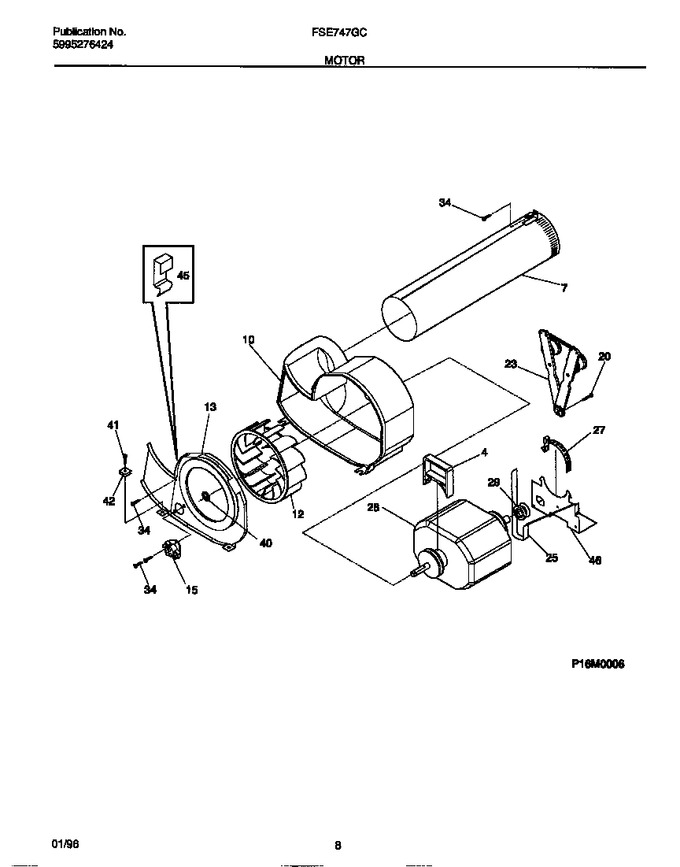

05 - Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	131435200		Lock-fan Housing				$ 73.02
7	131451600		Tube-exhaust				$ 54.02
10	131367500		Housing-fan		Appelez-nous	-
12	131967600		Wheel-blower   (Replaces: 131479300)				$ 209.79
13	131967600		Cover-fan   (Replaces: 131367600)				$ 209.79
15	131298300		Thermostat - Control			Immediately	$ 62.37
20	131017900		Screw-spacer, Hex Head, 1/4-20t X 1.25, Thread Cutting				$ 14.46
23	131382402		Arm-idler, W/pulley		Appelez-nous	-
25	131553800		Belt   (Replaces: 131130700)			Immediately	$ 28.35
27	131419800		Clamp-motor				$ 8.18
28	131461900		Motor		Appelez-nous	-
29	131488600		Pulley-motor		Appelez-nous	-
34	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.36
40	131505600		Nut-blower Wheel		Appelez-nous	-
41	131346600		Screw		Appelez-nous	-
42	3201209		Washer		Appelez-nous	-
45	131484500		Clip-cover		Appelez-nous	-
46	131377500		Bracket-motor		Appelez-nous	-
