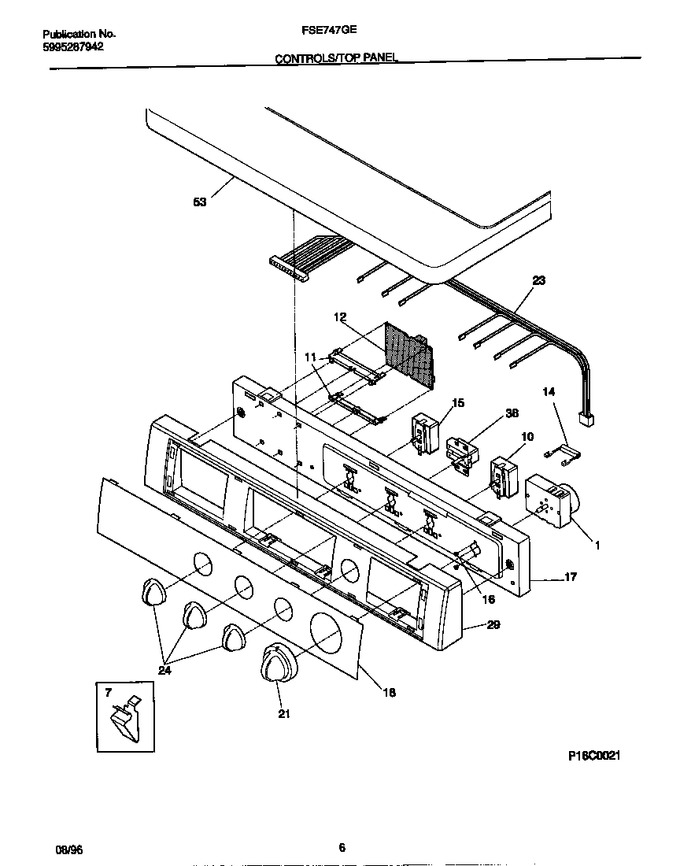

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131719100		Timer-dryer   (Replaces: 131063200)			Immediately	$ 269.37
7	3205821		Clip-top Panel, To Front Panel			Immediately	$ 35.44
10	134398300		Switch-start   (Replaces: 131447800)			Immediately	$ 77.82
11	131089800		Bracket-board, (2)				$ 50.83
12	131489900		Board-control, Motor				$ 68.67
14	3205243		Resistor-power, 4.4k		Appelez-nous	-
15	131048100		Switch, Temperature		Appelez-nous	-
16	218359202		Screw, Cr Pan Head, 8-32 X 0.25, Thread Forming   (Replaces: 5303283289)				$ 10.63
17	131622501		Bracket-control		Appelez-nous	-
18	131600700		Panel-control		Appelez-nous	-
21	131264900		Knob-timer White,white		Appelez-nous	-
23	131531900		Harness-main				$ 333.02
24	131265000		Knob-switch, White				$ 38.89
29	131601400		Frame-control Panel		Appelez-nous	-
38	131048300		Buzzer		Appelez-nous	-
53	131391608		Panel-top, White		Appelez-nous	-
*19962	5303281103		Tie-harness		Appelez-nous	-
