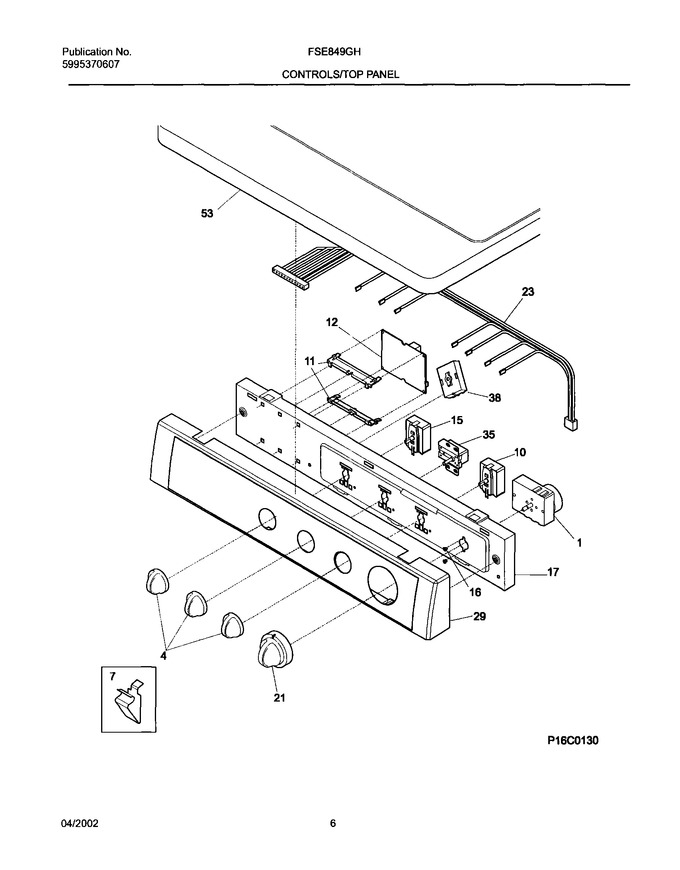

SELECT A DIAGRAM

01 - Cover


03 - Dry Cab,heater


05 - Frnt Panel,door


07 - Control Panel


09 - Motor,blower


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131930600		Timer-dryer ``t``				$ 320.98
4	131965300		Knob-rot-dryer Wht/drk Gray			Immediately	$ 53.15
7	3205821		Clip-top Panel, To Front Panel			Immediately	$ 35.44
11	131587400		Bracket-control Board,(2)				$ 44.40
16	134034300		Screw, Cr Pan Hd, 8-32 X 0.250, Thrd Forming		Appelez-nous	-
17	134064501		Brkt-cont Mtg-stack Dryer				$ 76.13
21	131873500		Asmy-knob/ind Wht/drk Gray Ft1			Immediately	$ 49.62
29	131666920		Asmy-cons Frame/tape/trim		Appelez-nous	-
53	134086812		Panel-top Stack Dryer Wht				$ 336.42
F10	134398300		Switch-start   (Replaces: 131447800)			Immediately	$ 77.82
F12	131620200		Control Board,moisture Sensor		Appelez-nous	-
F15	131641900		Switch-temperature		Appelez-nous	-
F23	134008900		Harn-fsd Cont Trh Elec		Appelez-nous	-
F35	131243200		Switch-2pos Temp/bzr/xtra Rins		Appelez-nous	-
F38	131959200		Beeper Continuous Low Tone				$ 134.82
NI	134110500		Harness-main Stack				$ 251.95
