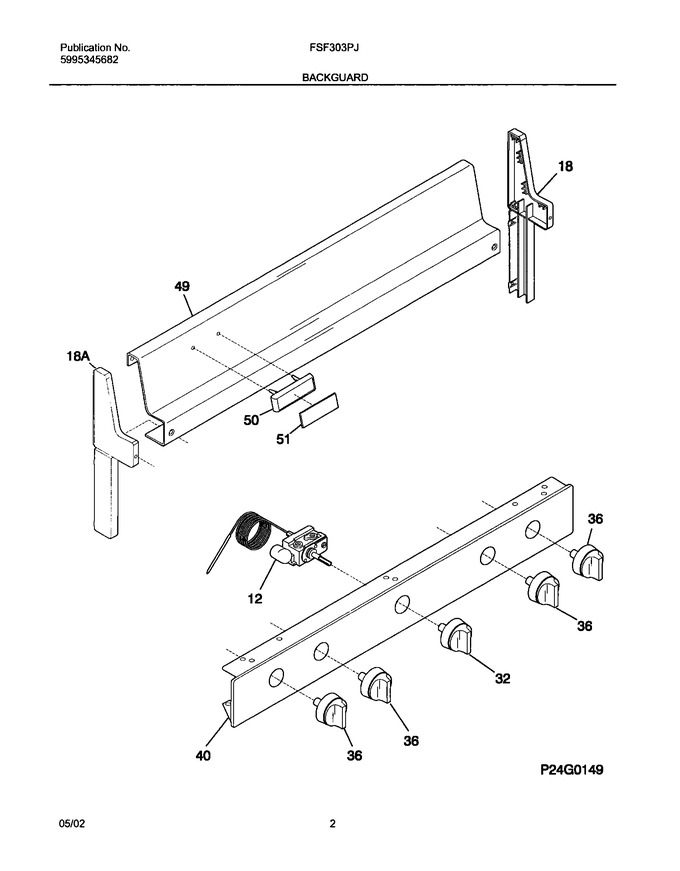

SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	3202802		End Cap,black ,rh		Appelez-nous	-
32	316102304		Knob Thermostat,black				$ 71.47
36	316009008		Knob-top Valve, (4)				$ 54.86
40	319009214		Panel-manifold		Appelez-nous	-
49	3051199		Panel-backguard, White		Appelez-nous	-
50	316096900		Bezel,nameplate ,black				$ 15.38
51	316095420		Nameplate,black		Appelez-nous	-
18A	3202801		End Cap,black ,lh		Appelez-nous	-
F12	5303935014		Thermostat,oven ,w/screws		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.500 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5303280590		Screw,thermostat ,(2)		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black,back/bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome ,hinge,ind Light,manifold Panel   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
