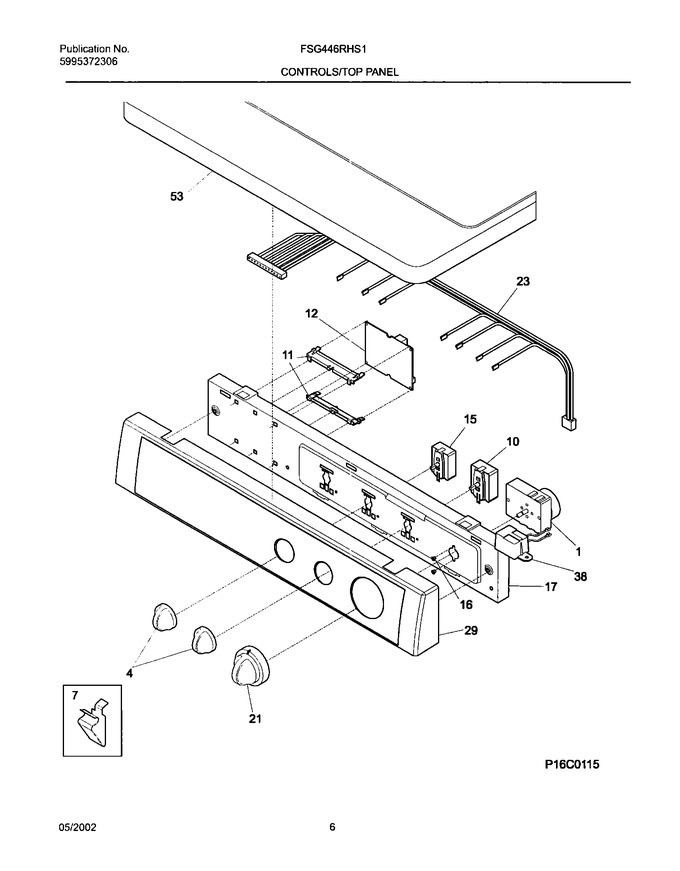

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131905500 | Timer-dryer H-elec/gas Ms |
|
$ 341.95 | |||||
| 4 | 131965300 | Knob-rot-dryer Wht/drk Gray |
|
Immediately | $ 53.15 | ||||
| 7 | 3205821 | Clip-top Panel, To Front Panel |
|
Immediately | $ 35.44 | ||||
| 11 | 131587400 | Bracket-control Board,(2) |
|
$ 44.40 | |||||
| 16 | 134034300 | Screw, Cr Pan Hd, 8-32 X 0.250, Thrd Forming |
|
- | |||||
| 17 | 134064501 | Brkt-cont Mtg-stack Dryer |
|
$ 76.13 | |||||
| 21 | 131873500 | Asmy-knob/ind Wht/drk Gray Ft1 |
|
Immediately | $ 49.62 | ||||
| 29 | 131666917 | Asmy-cons Frame/tape/trim |
|
$ 182.55 | |||||
| 53 | 134086812 | Panel-top Stack Dryer Wht |
|
$ 336.42 | |||||
| F10 | 134398300 | Switch-start (Replaces: 131447800) |
|
Immediately | $ 77.82 | ||||
| F12 | 131620200 | Control Board,moisture Sensor |
|
- | |||||
| F15 | 131641900 | Switch-temperature |
|
- | |||||
| F23 | 134009400 | Harn-fsd Cont Hrj Gas |
|
- | |||||
| F38 | 5303286537 | Buzzer |
|
$ 93.61 | |||||
| NI | 134006600 | Harn-main Gas Stack,x |
|
$ 277.78 |
