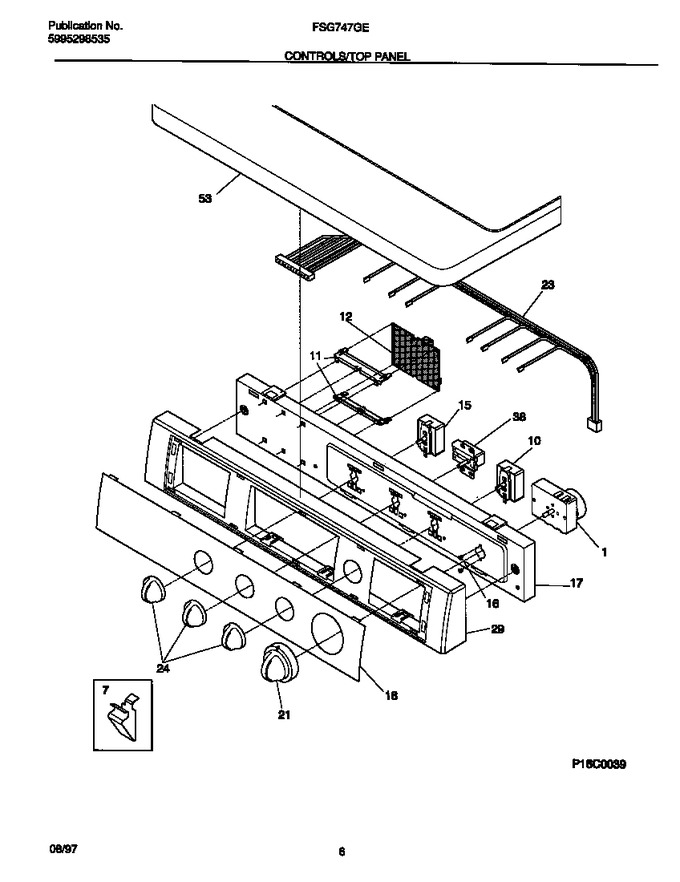

04 - Controls/top Panel


05 - Motor


06 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131111300		Timer		Appelez-nous	-
7	3205821		Clip-top Panel, To Front Panel			Immediately	$ 35.44
10	134398300		Switch-start   (Replaces: 131447800)			Immediately	$ 77.82
11	131089800		Bracket-board, (2)				$ 50.83
12	131490000		Board-control, Motor				$ 78.76
15	131362500		Switch-temperature				$ 147.30
16	218359202		Screw, Cr Pan Head, 8-32 X 0.25, Thread Forming   (Replaces: 5303283289)				$ 10.63
17	131622501		Bracket-control		Appelez-nous	-
18	131600700		Panel-control		Appelez-nous	-
21	131264900		Knob-timer White,white		Appelez-nous	-
23	131447300		Harness-dryer		Appelez-nous	-
24	131265000		Knob-switch, White				$ 38.89
29	131601400		Frame-control Panel		Appelez-nous	-
38	131048300		Buzzer		Appelez-nous	-
53	131601308		Panel-top White		Appelez-nous	-
