SELECT A DIAGRAM

01 - Cover


02 - Cabinet/drum


03 - Front Panel/lint Filter

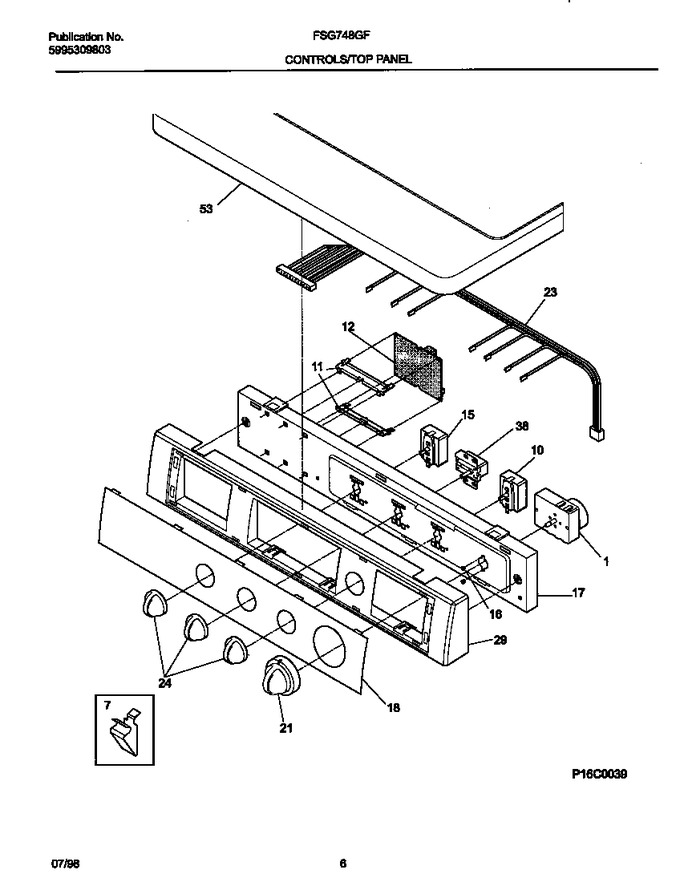

04 - Controls/top Panel


05 - Motor


06 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131710100		Timer-r-stacked Dryer Elec/gas				$ 350.54
7	3205821		Clip-top Panel, To Front Panel			Immediately	$ 35.44
10	134398300		Switch-start   (Replaces: 131447800)			Immediately	$ 77.82
11	131587400		Bracket-control Board,(2)				$ 44.40
12	131620200		Board-control,moisture Sensor		Appelez-nous	-
15	131641900		Switch-temperature		Appelez-nous	-
16	218359202		Screw, Cr Pan Head, 8-32 X 0.25, Thread Forming   (Replaces: 5303283289)				$ 10.63
17	131764500		Brkt-cont Mtg-stack Dryer		Appelez-nous	-
18	131712900		Trimplate Fde/b7rrhn		Appelez-nous	-
21	131264900		Knob-timer White,white		Appelez-nous	-
23	131636900		Harness-main				$ 196.56
24	131965300		Knob-rot-dryer-wht/drk Gray   (Replaces: 131666604)			Immediately	$ 53.15
29	131689700		Console Frame-dryer-white		Appelez-nous	-
38	131048300		Buzzer		Appelez-nous	-
53	131601308		Panel-top White		Appelez-nous	-
*21765	131641200		Harn-cont-r Gas-stacked		Appelez-nous	-
