01 - Cover
02 - P16v0038 Dry Cab,heater

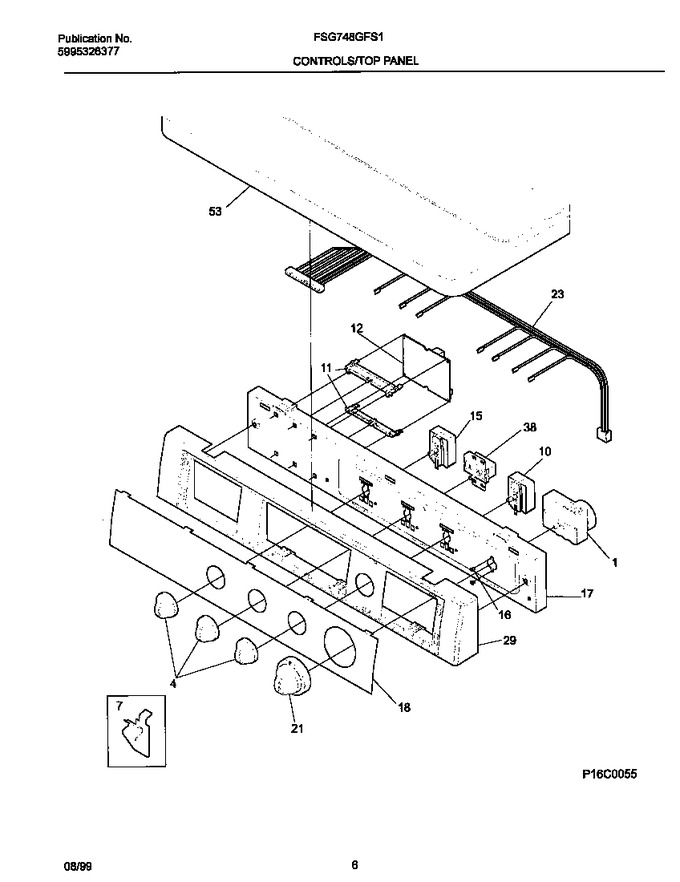

03 - P16d0023 Frnt Pnl,door
04 - P16c0055 Control Panel
05 - P16m0019 Motor,blower
06 - P16b0010 Burner,valve
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131710100 | Timer-r-stacked Dryer Elec/gas |
|
$ 350.54 | |||||
| 4 | 131965300 | Knob-rot-dryer-wht/drk Gray (Replaces: 131666604) |
|
Immediately | $ 53.15 | ||||
| 7 | 3205821 | Clip-top Panel, To Front Panel |
|
Immediately | $ 35.44 | ||||
| 10 | 134398300 | Switch-start (Replaces: 131447800) |
|
Immediately | $ 77.82 | ||||
| 11 | 131587400 | Bracket-control Board,(2) |
|
$ 44.40 | |||||
| 12 | 131620200 | Board-control,moisture Sensor |
|
- | |||||
| 15 | 131641900 | Switch-temperature |
|
- | |||||
| 16 | 218359202 | Screw,cr Pan Head `8-32 X 0.250 ,thread Forming (Replaces: 5303283289) |
|
$ 10.63 | |||||
| 17 | 131859700 | Brkt-cont Mtg-stack Dryer |
|
- | |||||
| 18 | 131712900 | Trimplate Fde/b7rrhn |
|
- | |||||
| 21 | 131264900 | Knob-timer White,white |
|
- | |||||
| 23 | 131636900 | Harness-main |
|
$ 196.56 | |||||
| 29 | 131689700 | Console Frame-dryer-white |
|
- | |||||
| 38 | 131048300 | Buzzer |
|
- | |||||
| 53 | 131601308 | Panel-top White |
|
- | |||||
| *55286 | 131847800 | Harness Rrh Gas Cont |
|
- |
