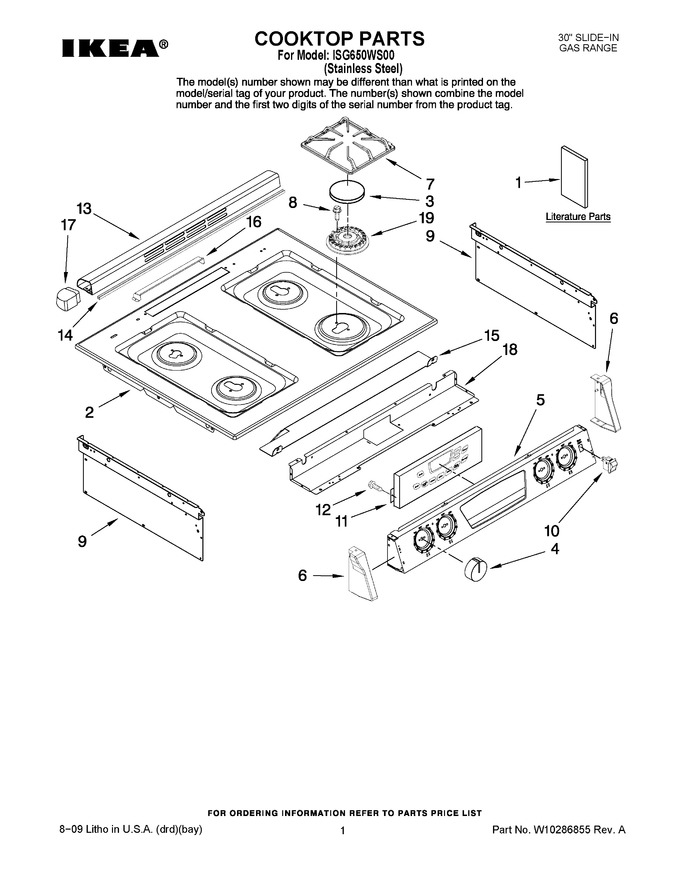

01 - Cooktop Parts


02 - Chassis Parts


03 - Manifold Parts


04 - Drawer And Rack Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10184784		Installation Instructions		Appelez-nous	-
1	W10190680		Wiring Diagram (english)		Appelez-nous	-
1	W10190683		Wiring Diagram (french)		Appelez-nous	-
1	W10266954		Use & Care Guide		Appelez-nous	-
1	9762761		Brochure, Tips Safe Cooking (english)		Appelez-nous	-
1	W10065852		Brochure, Tips Safe Cooking (french)		Appelez-nous	-
2	W10202566		Cooktop		Appelez-nous	-
3	WP74007925		Cap, Burner (large (3))   (Replaces: 7504P219-60)				$ 86.81
3	WP3191898		Cap, Burner (small (1))   (Replaces: 7504P136-60)				$ 60.86
4	W10159630		Knob, Burner (4)			Immediately	$ 19.72
5	W10159623		Panel, Control		Appelez-nous	-
6	7726P400-60		End Cap (right)				$ 32.99
6	7726P401-60		End Cap (left)				$ 23.44
7	7518P248-60		Grate, Burner (4)				$ 77.31
8	WP3368921		Screw (8)   (Replaces: 7101P685-60)			Immediately	$ 6.42
9	2618F206-51		Panel, Sheild (right)				$ 135.68
9	2618F201-51		Panel, Sheild (left)				$ 32.51
10	7403P798-60		Switch, Rocker		Appelez-nous	-
11	W10197042		Control W/overlay				$ 390.71
12	WP59002061		Screw, Control   (Replaces: 7101P077-60)				$ 6.98
13	7724P197-60		Cover, Vent				$ 99.53
14	7201P143-60		Gasket				$ 16.81
15	3604F421-51		Shield, Control				$ 32.71
16	3601F221-45		Baffle, Vent Cover				$ 28.30
17	7726P396-60		Trim, End Cap (right)				$ 20.21
17	7726P397-60		Trim, End Cap (left)		Appelez-nous	-
18	3807F729-51		Support, Control Panel		Appelez-nous	-
19	WPW10406243		Burner, Base (lf, 5k (1))   (Replaces: 8286181)			Immediately	$ 33.50
19	WPW10406797		Burner, Base (rf/rr/lr, 12k (3))   (Replaces: 8286182)				$ 79.64
