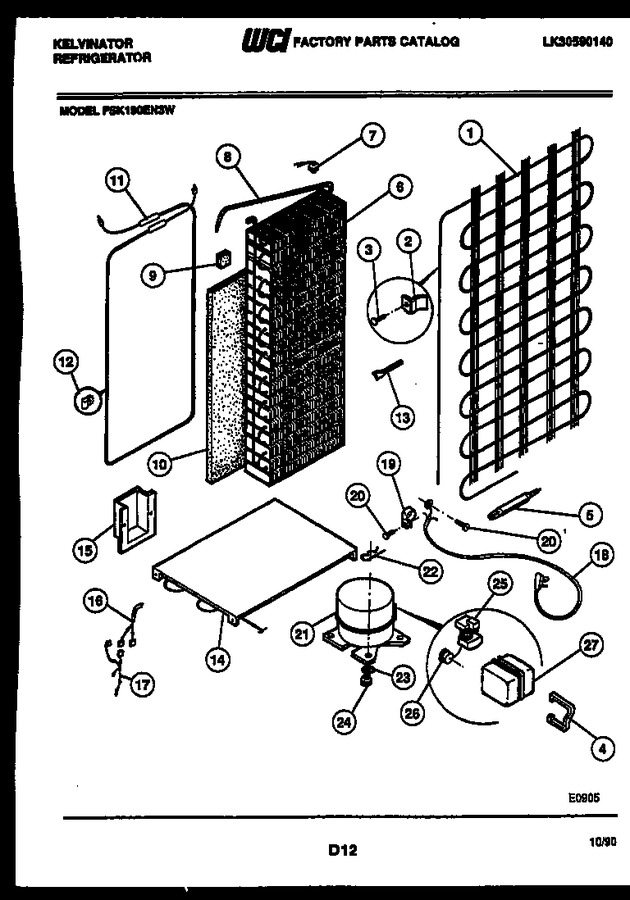

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308017228 | Condenser |
|
- | |||||
| 2 | 5303001342 | Bracket-condenser Mounting (4) |
|
- | |||||
| 3 | 5308000039 | Screw |
|
- | |||||
| 4 | 5303006412 | Strap-cover Mounting |
|
- | |||||
| 5 | 5303305677 | Drier-filter (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 6 | 5303916605 | Evaporator Coil |
|
- | |||||
| 7 | 5303917954 | Thermostat, Defrost (Replaces: 5303007540) |
|
Immediately | $ 30.47 | ||||
| 8 | 5308017565 | Heat Exchanger |
|
- | |||||
| 9 | 5308000828 | Insulator - Block - Evaporator (4) |
|
- | |||||
| 10 | 5303001235 | Insulator, Evaporator |
|
- | |||||
| 11 | 5303007568 | Heater, Defrost |
|
$ 233.05 | |||||
| 12 | 5308002777 | Support, Heater |
|
- | |||||
| 13 | 5308000110 | Strap - Heater/evaporator |
|
Immediately | $ 59.82 | ||||
| 14 | 5300188724 | Defrost Plate & Tube Assembly |
|
- | |||||
| 15 | 5303001197 | Cover-wiring |
|
- | |||||
| 16 | 5303015098 | Wiring Harness, Controls |
|
- | |||||
| 17 | 5308009616 | Wiring Harness - Compressor & Light Switches |
|
- | |||||
| 18 | 5316254901 | Service Cord |
|
- | |||||
| 19 | 5303001199 | Clamp |
|
$ 65.92 | |||||
| 20 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 21 | 5308950223 | Compressor W/ Electricals |
|
- | |||||
| 22 | 5308003596 | Clip-compressor (4) |
|
$ 6.62 | |||||
| 23 | 5308003633 | Washer-compressor (4) |
|
$ 35.67 | |||||
| 24 | 5308008778 | Grommet Compressor (4) |
|
- | |||||
| 25 | 5303007173 | Relay |
|
$ 207.43 | |||||
| 26 | 5308017555 | Overload |
|
- | |||||
| 27 | 5303006411 | Cover, Terminal |
|
- | |||||
| *13907 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| *13907 | 5308000039 | Screw |
|
- | |||||
| *13908 | 5303001199 | Clamp |
|
$ 65.92 | |||||
| *13908 | 5300189379 | Hot Tube Repair Kit |
|
- | |||||
| *13908 | 240396801 | Clamp, Nylon (Replaces: 5308000133) |
|
$ 19.13 | |||||
| *13908 | 5308009619 | Insulator-freezer Coil Top |
|
- | |||||
| 15A | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 21A | 5303916391 | Capacitor-run (non-illustrated) |
|
- | |||||
| 21B | 5300141713 | Screw-capacitor (non-illustrated) |
|
- | |||||
| 3A | 5308009617 | Washer, No. 10 Ext Tooth Lock (non-illustrated) |
|
- | |||||
| 5A | 240396801 | Clamp, Nylon (Replaces: 5308000133) |
|
$ 19.13 | |||||
| 5B | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 8A | 240396801 | Clamp, Nylon (Replaces: 5308000133) |
|
$ 19.13 | |||||
| 8B | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 |
