SELECT A DIAGRAM

02 - Freezer Door Parts


03 - Refrigerator Door Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Refrigerator Control Assembly, Damp


07 - System And Automatic Defrost Parts

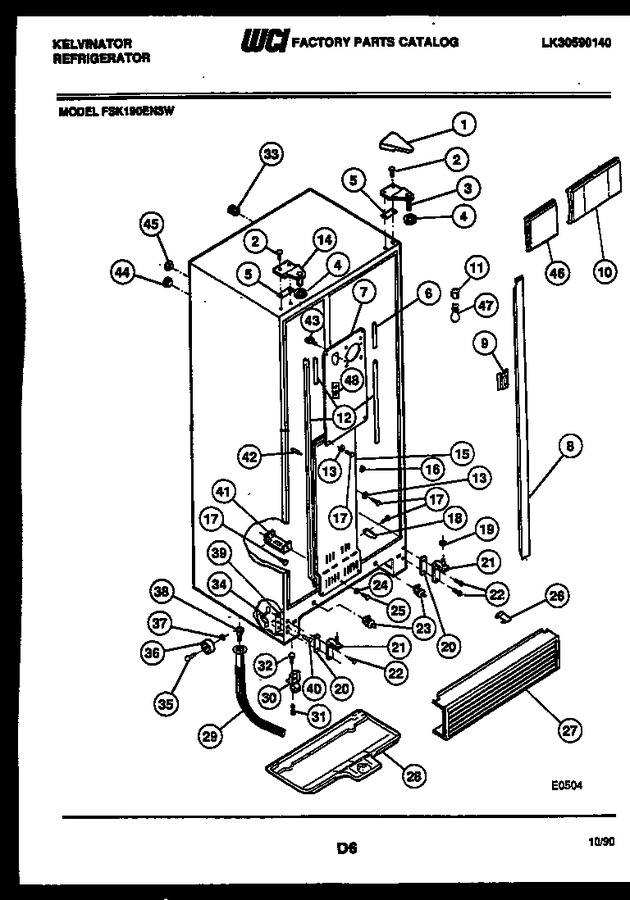

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303001665		Hinge Cover-wheat (2)		Appelez-nous	-
2	241710601		Screw   (Replaces: 5303001479)				$ 13.46
3	5308012934		Hinge Top, Rh		Appelez-nous	-
4	5308000186		Washer, Nylon			Immediately	$ 6.02
5	5303001037		Shim-upper Hinge (2)				$ 12.39
6	5303001219		Gasket-coil Cover (2)		Appelez-nous	-
7	5303006543		Cover-upper Coil		Appelez-nous	-
8	3916446		Mullion, Wheat		Appelez-nous	-
9	5300169100		Clip-mullion (3)		Appelez-nous	-
10	G164419-30		Light Shield - Refrigerator		Appelez-nous	-
11	218906802		Light Socket, Freezer   (Replaces: 5308000815)				$ 17.72
12	5303001233		Gasket-kit Cover		Appelez-nous	-
13	5303001216		Washer-nylon (8)		Appelez-nous	-
14	5303001062		Hinge-top Lh				$ 117.02
15	5308017223		Cover-lower Coil		Appelez-nous	-
16	5303001231		Clip-grounding		Appelez-nous	-
17	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
18	5316491203		Damper, Meat Keeper		Appelez-nous	-
19	5303001038		Washer-nylon-5/16 X 5/8 Od (2)				$ 13.34
20	5303001272		Shim-lower Hinge (6)		Appelez-nous	-
21	5303001271		Hinge, Bottom (2)				$ 102.38
22	5303001041		Screw-hinge Mounting (4)		Appelez-nous	-
23	5303208475		Switch-light (2)		Appelez-nous	-
24	5308009617		Washer - Exterior Lock		Appelez-nous	-
25	5303001230		Screw-8-32 X 9/16		Appelez-nous	-
26	5308000091		Clip-grille				$ 14.57
27	G161905-07		Grille		Appelez-nous	-
28	5308000086		Defrost Pan		Appelez-nous	-
29	5303209723		Drain Tube & Outlet Assembly		Appelez-nous	-
30	5308000118		Roller Assembly - Front (2)		Appelez-nous	-
31	5308017044		Screw-roller Mounting (2)				$ 6.34
32	5308009568		Bolt - Roller Adjustment (2)		Appelez-nous	-
33	5303001198		Tube-rubber (4)		Appelez-nous	-
34	5300077210		Speed Nut (2)		Appelez-nous	-
35	5308000266		Pin-rear Roller (2)		Appelez-nous	-
36	5303001030		Roller, Rear (2)				$ 17.80
37	5303001028		Push Nut (2)		Appelez-nous	-
38	5308000853		Heat Conductor		Appelez-nous	-
39	5303001273		Nut-special Twin (4)		Appelez-nous	-
40	5308000013		Shoulder Pin (2)		Appelez-nous	-
41	5308000738		Bracket-coil Cover		Appelez-nous	-
42	5303001250		Support-coil Cover (5)		Appelez-nous	-
43	5308000097		Support, Coil Cover (2)		Appelez-nous	-
44	5303001286		Ferrule-inner (2)		Appelez-nous	-
45	5303001287		Ferrule-outer (2)		Appelez-nous	-
46	G164452-35		Light Shield - Freezer		Appelez-nous	-
47	5303001179		Light Bulb		Appelez-nous	-
48	08012270		Decorative Plug		Appelez-nous	-
*13895	5308017046		Clip-wiring Harness		Appelez-nous	-
*13895	5303001213		Support-spec Barrel-light Shield (6)		Appelez-nous	-
*13895	5308016571		Button-plug (3)				$ 4.79
*13895	5304509705		Grommet - Freezer Shelf Mounting (10)   (Replaces: 5303001609)				$ 10.01
14A	5308012296		Plate-tapping (non-illustrated)				$ 47.44
15A	5303208309		Plug-short Test Hole (non-illustrated)				$ 45.50
23A	08009775		Clip-cable (2) (non-illustrated)		Appelez-nous	-
28A	08000099		Clip-defrost		Appelez-nous	-
3A	5308012296		Plate-tapping (2) (non-illustrated)				$ 47.44
7A	5303209814		Nut U, Type (2) (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
