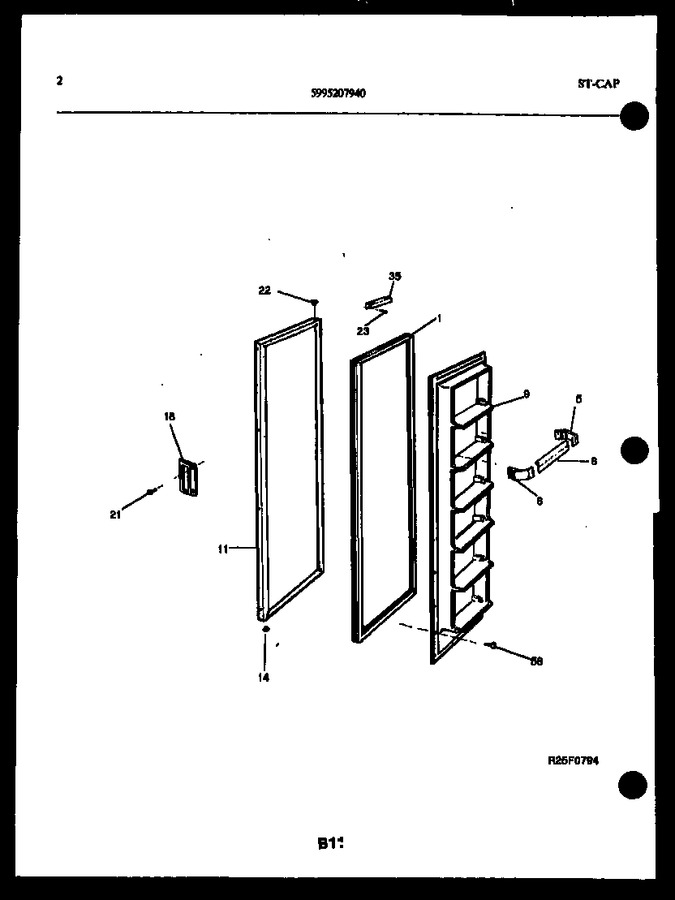

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303200474 | Gasket-frzr Door, Magnetic |
|
- | |||||
| 5 | 5316101801 | Support-door Rack, Rh |
|
- | |||||
| 6 | 5316108001 | Support-door Rack, Lh |
|
- | |||||
| 8 | 5303274685 | Rack-door, (6) |
|
- | |||||
| 9 | 5303274655 | Panel-inner Door, Frzr |
|
- | |||||
| 11 | 5303916933 | Panel-frzr Door, White |
|
- | |||||
| 14 | 5315230801 | Button Plug, Refr/fzr Door |
|
- | |||||
| 18 | 5303273079 | Handle-door, White |
|
- | |||||
| 21 | 5308011745 | Screw |
|
$ 10.38 | |||||
| 22 | 5303001022 | Bearing-hinge Upper |
|
- | |||||
| 23 | 5303001020 | Screw-door Closer Mtg, Cr Flat Head, 8-32(d) X 1/2 |
|
- | |||||
| 35 | 5303200272 | Closer-door |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *20605 | 5303007739 | Insulation, Door, Fiberglass, (bulk) |
|
- | |||||
| 22A | 5308012007 | Bearing-hinge (non-illustrated) |
|
- |
