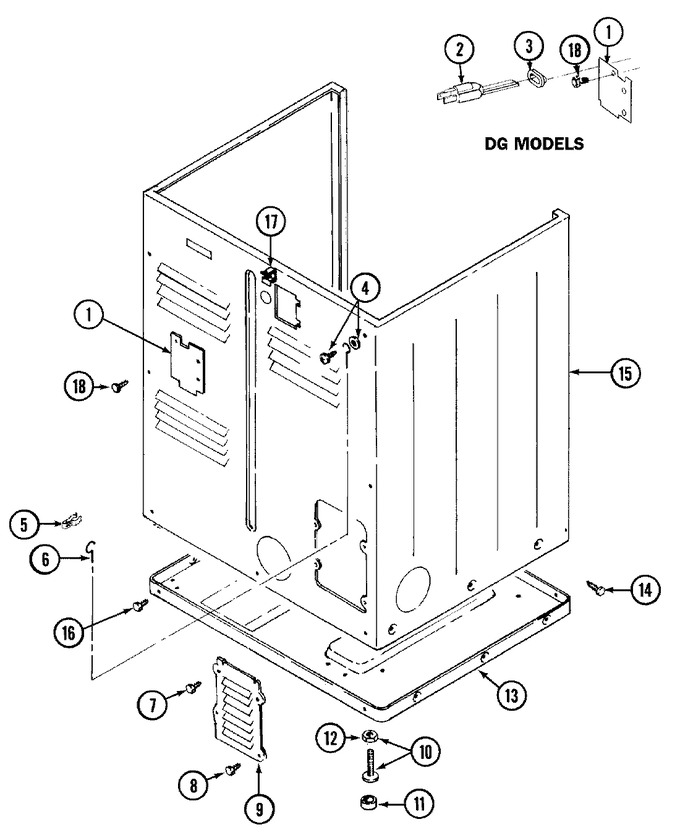

01 - Cabinet-front (ldg7304aam & Ldg7304abm)


02 - Cabinet-rear (ldg7304aam & Ldg7304abm)


03 - Control Panel (ldg7304aam & Ldg7304abm)


04 - Door (ldg7304aam & Ldg7304abm)


05 - Ducting


06 - Gas Valve (ldg7304aam & Ldg7304abm)


07 - Motor Drive (ldg7304aam & Ldg7304abm)


08 - Tumbler (ldg7804aam & Ldg7804abm)


09 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y312905		Cover, Terminal	A0	Appelez-nous	-
2	33001246		Cord, Power	A0	Appelez-nous	-
5	301548		Clamp, Ground (w/screw)	A0	Appelez-nous	-
6	204807		Grnd.wire,supp.plte To Top Cvr	A0	Appelez-nous	-
7	WP90767		Screw   (Replaces: Y313559)	A0		Immediately	$ 7.04
8	WP90767		Screw   (Replaces: 211294)	A0		Immediately	$ 7.04
9	Y312951		Cover, Access	A0	Appelez-nous	-
10	WP233550		Adjustable Leg & Nut   (Replaces: Y305086)	A0			$ 7.16
11	Y314137		Foot, Rubber	A0			$ 14.08
12	WP62739		Nut   (Replaces: Y052740)	A0			$ 6.85
13	Y303361		Base Assy.	A0	Appelez-nous	-
14	213007		Screw, Cabinet	A0			$ 10.99
15	33001160		Cabinet (alm)	A0	Appelez-nous	-
16	Y313561		Screw----na	A0			$ 5.27
16	Y310632		Screw	A0	Appelez-nous	-
17	Y310376		Clip, Wire Harness	A0	Appelez-nous	-
18	Y313561		Screw----na	A0			$ 5.27
