01 - Cover

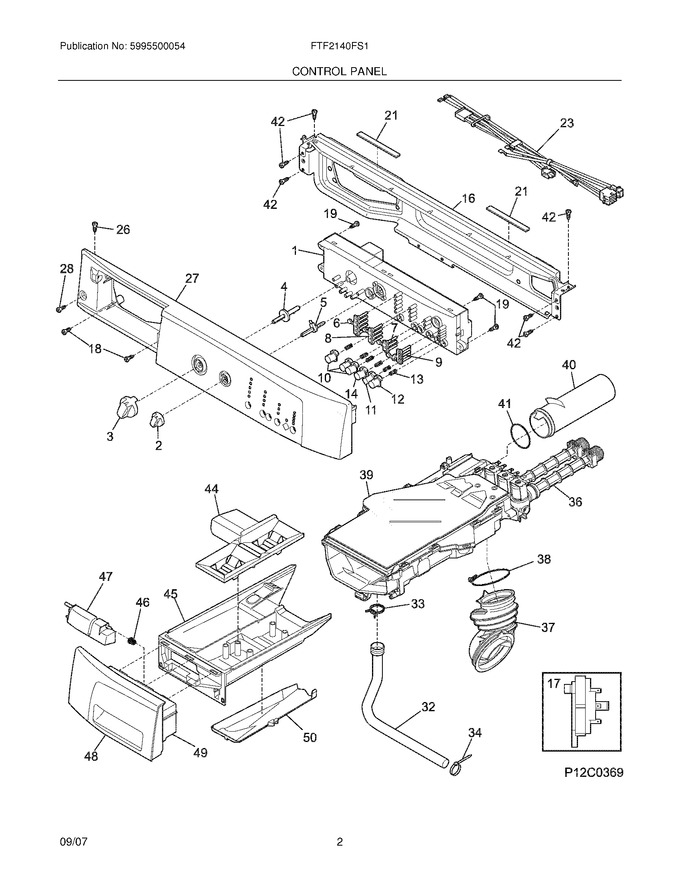

03 - Control Panel
05 - Cabinet/top
07 - Motor/tub
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 137005000NH | Control Board,pc ,with Housing (Replaces: 134732918) |
|
Immediately | $ 228.54 | ||||
| 2 | 134432000 | Knob,function |
|
$ 43.42 | |||||
| 3 | 134431900 | Knob,program |
|
$ 93.19 | |||||
| 4 | 134347700 | Pin,program Knob |
|
$ 19.74 | |||||
| 5 | 134347300 | Pin,function Knob |
|
$ 11.60 | |||||
| 6 | 134429100 | Light Pipe,array ,1 Row Of 5 |
|
$ 130.57 | |||||
| 7 | 134429300 | Light Pipe,array ,3 Row Of 3 |
|
$ 11.34 | |||||
| 8 | 134429200 | Light Pipe,array ,2 Row Of 4 |
|
$ 12.97 | |||||
| 9 | 134429400 | Light Pipe,array ,4 Start Group |
|
$ 13.39 | |||||
| 10 | 134385100 | Push Button,function |
|
$ 13.76 | |||||
| 11 | 134385201 | Push Button,start |
|
$ 13.70 | |||||
| 12 | 134385301 | Push Button,pause |
|
$ 32.97 | |||||
| 13 | 134349400 | Spring,push Button |
|
$ 9.14 | |||||
| 14 | 134385400 | Push Button,soil |
|
$ 12.13 | |||||
| 16 | 134364800 | Bracket,top Front |
|
$ 70.98 | |||||
| 18 | 131302800 | Screw,10-16ab X 0.375 |
|
Immediately | $ 26.58 | ||||
| 19 | 134402900 | Screw,phillips ,6-19 X 0.650 |
|
$ 29.77 | |||||
| 21 | 134407900 | Dampener,vibration |
|
$ 17.01 | |||||
| 26 | 131205100 | Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive |
|
Immediately | $ 14.18 | ||||
| 27 | 134442600 | Panel,control Console |
|
$ 98.23 | |||||
| 28 | 131205300 | Screw,10-16 X 0.750 |
|
Immediately | $ 12.10 | ||||
| 32 | 134586500 | Hose,disp-to-bellows |
|
$ 52.24 | |||||
| 33 | 134737300 | Clamp (Replaces: 131306216) |
|
$ 20.13 | |||||
| 34 | 5304464772 | Cable Tie,5.60 Inch (Replaces: 5303321209) |
|
$ 10.63 | |||||
| 37 | 134372300 | Hose,disp-to-tub |
|
$ 58.32 | |||||
| 38 | 134372400 | Clamp,tub Hose |
|
$ 64.49 | |||||
| 39 | 134446150 | Housing,dispenser ,valve,cover |
|
- | |||||
| 40 | 134372100 | Tube,disp-to-overflo |
|
$ 50.87 | |||||
| 41 | 134372200 | O-ring,overflow Tube |
|
$ 13.74 | |||||
| 42 | 131168200 | Screw,pan Head ,8-18b X 0.31 |
|
Immediately | $ 14.18 | ||||
| 44 | 134370200 | Cover,dispenser |
|
Immediately | $ 41.11 | ||||
| 45 | 134370000 | Drawer,dispenser |
|
Immediately | $ 74.11 | ||||
| 46 | 134349500 | Spring,door Latch |
|
$ 7.71 | |||||
| 47 | 134386500 | Latch,dispenser ,slider Lock |
|
$ 35.44 | |||||
| 48 | 134453300 | Handle,dispenser ,front |
|
$ 117.39 | |||||
| 49 | 134386200 | Frame,drawer Handle |
|
$ 107.21 | |||||
| 50 | 134409320 | Conveyor,dispenser ,lower (Replaces: 134370100) |
|
Immediately | $ 366.58 | ||||
| F17 | 134844501 | Switch,pressure |
|
$ 60.96 | |||||
| F23 | 134435300 | Wiring Harness,controls |
|
$ 66.94 | |||||
| F36 | 134866600 | Valve,dispenser ,non Ntc (Replaces: 134870300) |
|
Immediately | $ 147.47 | ||||
| NI | 134743300 | Harness,main |
|
- |
