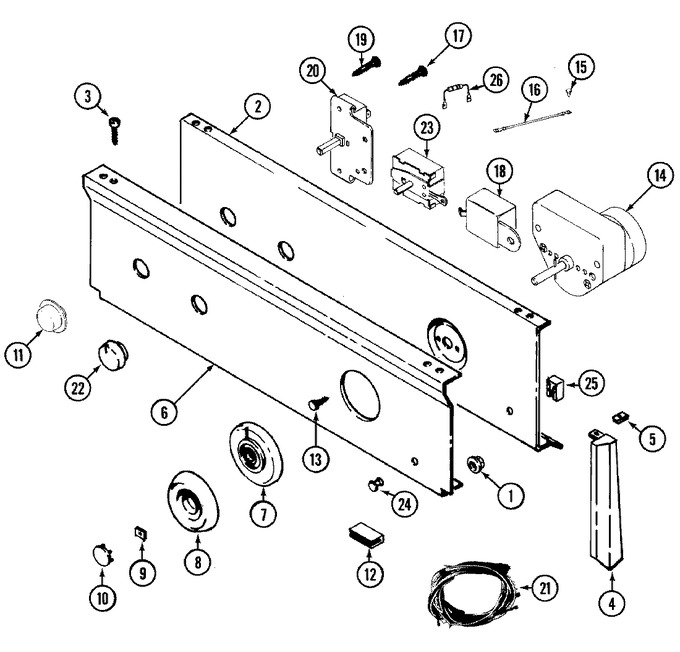

03 - Control Panel


04 - Door


05 - Gas Valve


06 - Motor Drive


07 - Tumbler


08 - Wiring Information-ldg7314aax


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	214872		Palnut, End Cap	A0	Appelez-nous	-
2	33001237		Plate, Support	A0	Appelez-nous	-
3	314728		Screw,ctrl.pnl & End Cap(blk)	A0	Appelez-nous	-
4	22001288		End Cap, Ctrl. Pnl. (lt-blk)	A0	Appelez-nous	-
4	22001290		End Cap, Ctrl. Pnl. (rt-blk)	A0	Appelez-nous	-
5	214894		Fastener, End Cap	A0	Appelez-nous	-
6	33001100		Panel, Control (blk)	A0	Appelez-nous	-
7	33001182		Skirt, Timer Dial (blk)	A0	Appelez-nous	-
8	315041		Knob, Timer	A0	Appelez-nous	-
9	W10155650		Nut   (Replaces: 312273)	A0			$ 12.03
10	216193		Cap, Timer Knob (blk)	A0	Appelez-nous	-
11	33001184		Button (blk)	A0	Appelez-nous	-
12	214897		Pad, Control Panel	A0	Appelez-nous	-
13	WP488234		Screw, Switches   (Replaces: 315317)	A0			$ 6.07
14	WPY308254		Timer   (Replaces: Y308254)	A0			$ 323.88
15	WP489128		Screw, Ground Wire To Base--na   (Replaces: 210186)	A0			$ 9.79
16	204807		Grnd.wire,supp.plte To Top Cvr	A0	Appelez-nous	-
17	WP488234		Screw, Switches   (Replaces: 315317)	A0			$ 6.07
18	Y308205		Buzzer	A0	Appelez-nous	-
19	WP488234		Screw, Switches   (Replaces: 315317)	A0			$ 6.07
20	33001232		Switch, Push To Start	A0	Appelez-nous	-
21	33001548		Harness, Wire	16	Appelez-nous	-
21	33001353		Wire Harness, Main	A1	Appelez-nous	-
21	33001122		Harness, Wire	A0	Appelez-nous	-
22	22001267		Knob, Selector Switch (blk)	A0	Appelez-nous	-
23	33001229		Switch, Rotary (3 Position)	A0	Appelez-nous	-
24	WP7730P011-60		Lens, Indicator Light   (Replaces: 22001215)	A0			$ 5.16
25	33001224		Light, Indicator	A0	Appelez-nous	-
26	33001103		Resistor (med. Temp)	A0	Appelez-nous	-
