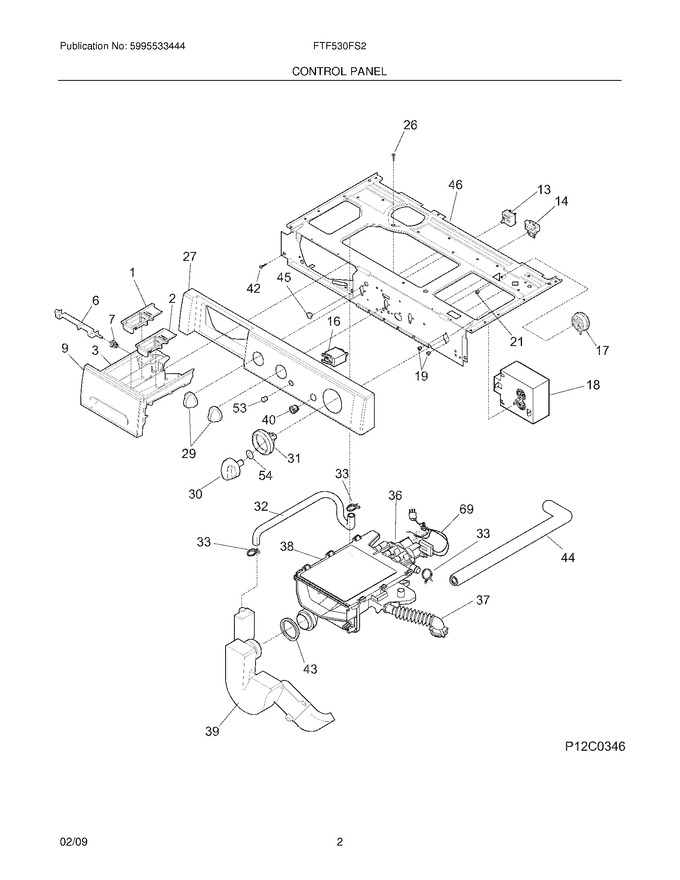

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131272100		Cover-bleach				$ 42.50
2	131272000		Cover-softener				$ 71.66
3	131271910		Drawer,dispenser				$ 52.03
6	131374500		Latch,disp Drawer Hdl				$ 44.45
7	131427500		Spring				$ 14.07
9	131691267		Handle,dispenser ,with Trim				$ 78.38
19	131243800		Screw,pan Hd Locking ,8-32ca X 0.375 ,cup Point				$ 10.46
21	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
26	131823400		Screw,8-18 X 2.00				$ 1.42
27	131887207		Console,frame/trim Assy				$ 123.80
29	131761704		Knob,rotary ,white/dark Gray				$ 43.38
30	134191800		Knob,timer			Immediately	$ 112.91
31	131853900		Pointer,timer ,white ,gray Indicator			Immediately	$ 121.07
32	131786100		Hose,siphon/valve				$ 66.62
33	134737300		Clamp   (Replaces: 131306216)				$ 20.13
37	131271600		Hose-tub				$ 90.01
38	131803710		Dispenser Assy				$ 339.83
39	131863300		Siphon				$ 30.96
42	131168200		Screw,10-16ab X 0.375   (Replaces: 134547800)			Immediately	$ 14.18
43	131749200		Gasket-seal				$ 20.33
44	131786000		Hose-dispenser				$ 114.98
45	5303321107		Bushing,idler				$ 4.52
46	134191412		Panel,control Mtg. ,wing Bend				$ 168.89
53	131724800		Lens,status Light ,clear				$ 12.06
54	5308015493		Spacer,washer ,timer Shaft				$ 14.36
F13	134397500		Switch,temperature ,3 Position				$ 26.25
F14	134126700		Buzzer,adjustable				$ 55.65
F16	131724700		Lamp,status Light				$ 59.59
F17	134438301		Switch,pressure ,water Optimizer				$ 49.14
F18	137394000		Timer   (Replaces: 134378400)				$ 428.70
F36	131974700		Valve,dispenser ,w/seal			Immediately	$ 104.10
F40	134040800		Switch,on/off ,white ,round				$ 65.92
F69	134992800		Wiring Harness,main				$ 159.50
NI	131307900		Clamp,siphon/bellows				$ 11.34
NI	131931201		Dampener,vibration ,3.5 X 2 X 2 In. ,foam				$ 14.02
