SELECT A DIAGRAM

01 - Cover


03 - Cabinet/top


05 - Motor/tub


07 - Transmission

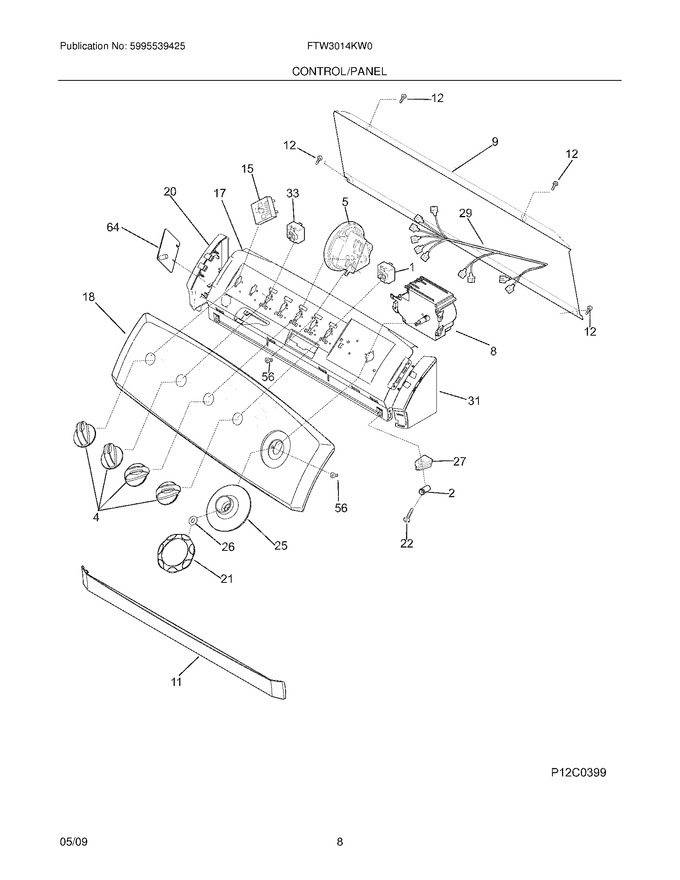

09 - Control/panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	134096100		Spacer,console Mtg				$ 13.55
4	134844410		Knob,rotary ,white			Immediately	$ 57.36
5	137014800		Switch,pressure				$ 84.49
9	131992910		Panel,backsheet ,console				$ 64.73
11	134019900		Closure,console Trim ,white ,front				$ 66.68
12	131168200		Screw,10-16ab X 0.375   (Replaces: 134547800)			Immediately	$ 14.18
17	131993040		Bracket,control Mtg.				$ 46.83
18	137152600		Panel,trimplate ,white ,console Front		Appelez-nous	-
20	134019610		End Cap,white ,lh				$ 46.31
21	134034800		Knob,timer ,white ,assy				$ 54.13
22	131266330		Screw,8-18 X 1.250				$ 7.63
25	134034700		Pointer-timer				$ 54.60
26	5308015493		Spacer,washer ,timer Shaft				$ 14.36
27	131197000		Clip-console Mtg				$ 13.62
31	134019600		End Cap,white ,rh				$ 46.10
56	131243800		Screw,pan Hd Locking ,8-32ca X 0.375 ,cup Point				$ 10.46
F1	134404200		Switch,speed Control ,4 Posn Rotary				$ 41.90
F15	134409000		Switch,temperature ,4 Posn Rotary				$ 51.29
F29	137171100		Wire Harness		Appelez-nous	-
F33	134406000		Switch,water Temp ,4 Posn Rotary		Appelez-nous	-
F64	131891010		Control Board,temperature ,atc				$ 145.16
F8	137169400		Timer,washer		Appelez-nous	-
NI	137152500		Energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
