01 - Body
02 - Control Panel
03 - Door/drawer (31mx-5kx, 31mx-5klx)

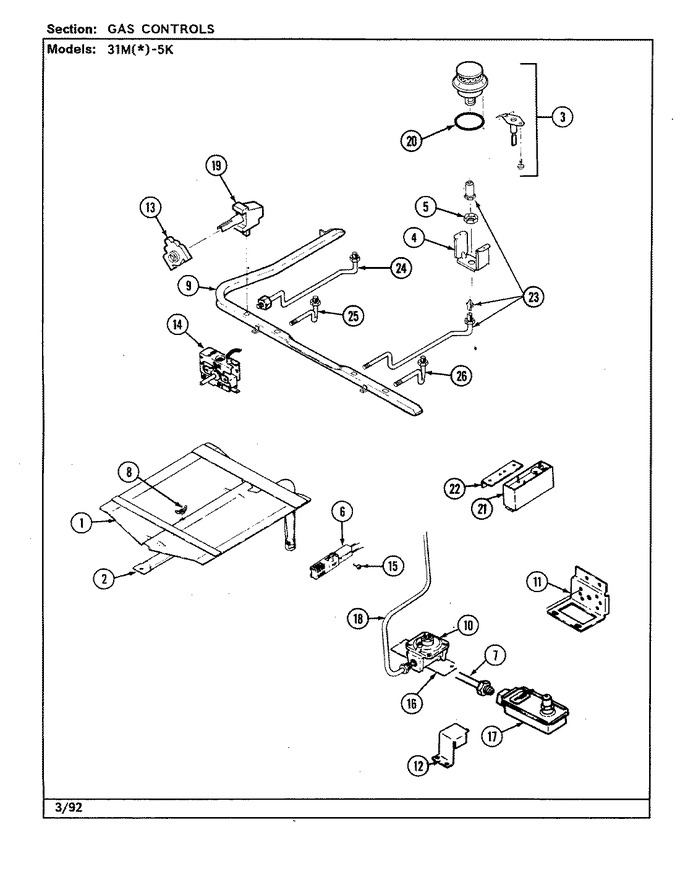

04 - Gas Controls
05 - Oven
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F181-45 | Baffle, Oven Burner | 01 |
|
- | ||||
| 2 | 3403D027-45 | Burner, Oven | 01 |
|
- | ||||
| 3 | WP3412D024-09 | Burner, Sealed (Replaces: 3412D015-09) | 01 |
|
Immediately | $ 92.69 | |||
| 3 | WP3412D024-09 | Burner, Sealed (black) (Replaces: 3412D016-09) | 02 |
|
Immediately | $ 92.69 | |||
| 3 | 5111A360-60 | Wire, Igniter | 01 |
|
$ 5.70 | ||||
| 3 | WP74004005 | Screw (Replaces: 7118P013-60) | 01 |
|
$ 6.95 | ||||
| 3 | 7432P072-60 | Igniter Top Burner | 01 |
|
- | ||||
| 3 | 5111A361-60 | Wire Igniter | 01 |
|
- | ||||
| 4 | 3807F378-45 | Support, Orifice Fitting | 01 |
|
- | ||||
| 5 | 7103P119-60 | Palnut | 01 |
|
- | ||||
| 6 | 4005F304-51 | Cover, Wire | 01 |
|
- | ||||
| 6 | 12400035 | Igniter, Oven (Replaces: 7432P067-60) | 01 |
|
Immediately | $ 60.44 | |||
| 7 | 7506P098-60 | Tube, Regulator | 01 |
|
- | ||||
| 8 | 7103P030-60 | Nut, Wing | 01 |
|
$ 6.37 | ||||
| 9 | 7513P104-60 | Pipe, Manifold | 01 |
|
- | ||||
| 10 | 7510P048-60 | Regulator, Pressure | 01 |
|
- | ||||
| 11 | 3807F120-34 | Support | 01 |
|
- | ||||
| 11 | WP4159193 | Screw (Replaces: 7101P112-60) | 01 |
|
$ 4.29 | ||||
| 12 | 4005F173-51 | Cover, Valve Terminal | 01 |
|
- | ||||
| 13 | WP7403P287-60 | Switch, Igniter (Replaces: 7403P287-60) | 01 |
|
$ 130.75 | ||||
| 14 | 7101P279-60 | Screw W/washer | 01 |
|
- | ||||
| 14 | 7404P062-60 | Thermostat, Oven | 01 |
|
- | ||||
| 15 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 01 |
|
$ 4.29 | ||||
| 16 | 3801F191-45 | Bracket, Regulator Mtg | 01 |
|
- | ||||
| 16 | 7101P280-60 | Screw W/washer (blk) | 01 |
|
- | ||||
| 17 | 7501P108-60 | Valve, Oven | 01 |
|
- | ||||
| 18 | 7506P100-60 | Tube, Manifold Feed | 01 |
|
- | ||||
| 19 | 7101P296-60 | Screw | 01 |
|
- | ||||
| 19 | 7502P220-60 | Valve, Top Burner | 01 |
|
- | ||||
| 20 | WP3412D024-09 | Gasket, Burner (Replaces: 7201P050-60) | 01 |
|
Immediately | $ 92.69 | |||
| 21 | 996530074415 | Module, Spark (Replaces: 7431P021-60) | 01 |
|
$ 9.85 | ||||
| 22 | 3801F303-45 | Bracket, Spark Module | 04 |
|
- | ||||
| 22 | 3801F270-45 | Bracket, Spark Module | 01-03 |
|
- | ||||
| 23 | 7507P069-60 | Fitting, Orifice (rear 9,000) | 01 |
|
- | ||||
| 24 | 7507P092-60 | Fitting, Orifice (rear 12,000) | 01 |
|
- | ||||
| 25 | 7507P073-60 | Fitting, Orifice (frt 9,000) | 01 |
|
- | ||||
| 26 | 7507P071-60 | Fitting, Orifice (frt 12,000) | 01 |
|
- |
