Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 306184 Plug, Blocking (lpg Regulator) A3 Appelez-nous -
2 302810 Screw Assm - Blue Block Ope A3 Appelez-nous -
3 305861 Main Burner Orifice Kit-lpg A3 Appelez-nous -
4 MAL9000AXX Conversion Kit (natural To Lp)   (Replaces: Y306195) A3 Special Order $ 72.26

5 WPY307931 Holding, Booster Coil   (Replaces: Y307931) A3 Special Order $ 104.11

6 WP307930 Secondary Coil   (Replaces: 307930) A3 Special Order $ 95.14

7 304971 Screw A3 Appelez-nous -
8 4391996 Igniter Assy, Gas Valve   (Replaces: 304970) A3 In-Stock Immediately $ 42.36

9 WP33002793 Burner Assembly   (Replaces: 304974) A3 Special Order $ 161.35

10 Y310632 Screw A3 Appelez-nous -
11 307927 Gas Valve - 120v-50hz A3 Special Order $ 215.29

12 Y313561 Screw----na A3 Special Order $ 5.27

13 314566 Bracket, Gas Valve A3 Appelez-nous -
14 WP90767 Screw   (Replaces: 314082) A3 In-Stock Immediately $ 7.04

15 WP90767 Screw   (Replaces: Y313559) A3 In-Stock Immediately $ 7.04

16 Y303349 Shut-off, Gas Valve A3 Appelez-nous -
17 Y303383 Pipe & Bracket Assy. A3 Appelez-nous -
17 304706 Combustion Cone A3 Appelez-nous -
17 Y308549 Cone, Combustion A3 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

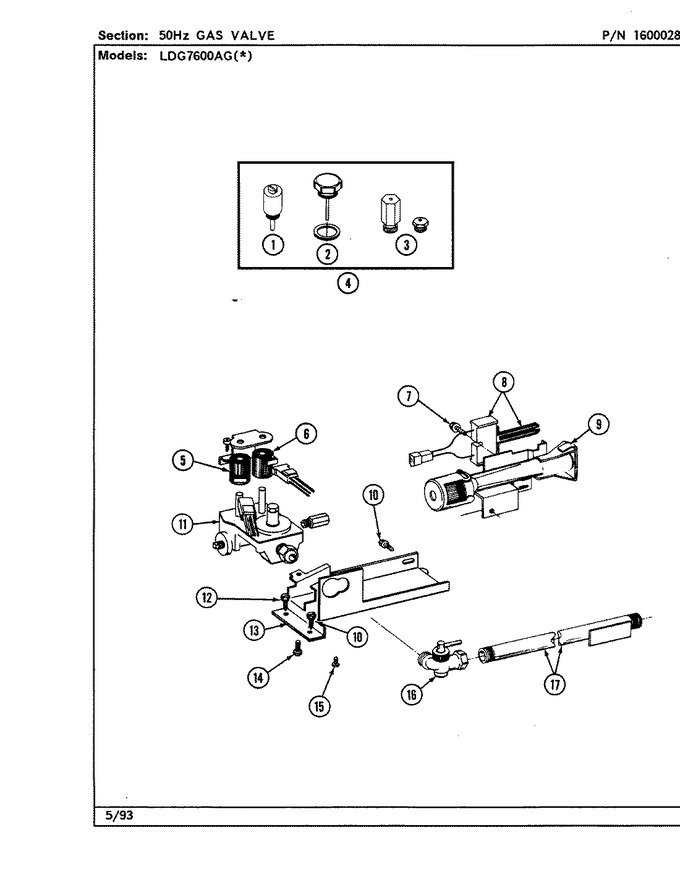

Diagram for LDG7600AGW
