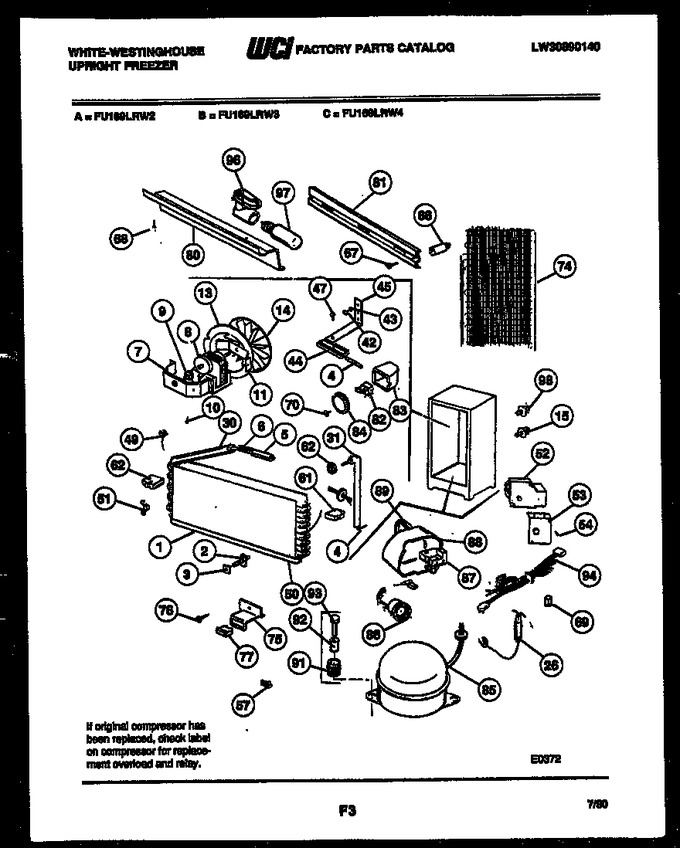

02 - Door Parts
03 - Cabinet Parts
04 - System And Automatic Defrost Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3017672 | Evaporator |
|
- | |||||
| 2 | 06599544 | Support, Evaporator |
|
- | |||||
| 3 | 08013198 | Spacer (2) |
|
- | |||||
| 4 | 3017673 | Heat Exchanger |
|
- | |||||
| 7 | 08013207 | Bracket |
|
$ 12.92 | |||||
| 8 | 3205519 | Fan Motor |
|
- | |||||
| 10 | 08037851 | Screw |
|
$ 3.57 | |||||
| 12 | 3161215 | Screw (2) |
|
- | |||||
| 15 | 08037958 | Fan Switch |
|
- | |||||
| 26 | 08000027 | Filter |
|
- | |||||
| 30 | 06594625 | Insulation-heat Exchanger |
|
- | |||||
| 31 | 09948773 | Insulation |
|
$ 12.60 | |||||
| 42 | 08009412 | Screw |
|
- | |||||
| 43 | F95480 | Washer |
|
- | |||||
| 44 | 05878562 | Clamp |
|
- | |||||
| 45 | 06594601 | Bracket, Control |
|
$ 17.64 | |||||
| 47 | F52943 | Screw |
|
- | |||||
| 48 | 08037932 | Sleeve |
|
- | |||||
| 49 | 3016814 | Thermostat |
|
- | |||||
| 50 | 06599535 | Element |
|
- | |||||
| 51 | 06599536 | Clip, Heater |
|
- | |||||
| 52 | 08037967 | Timer |
|
- | |||||
| 53 | 08016580 | Bracket |
|
- | |||||
| 54 | 08037849 | Screw (2) |
|
$ 8.98 | |||||
| 57 | 05878556 | Clip, Compressor Wire |
|
- | |||||
| 61 | 06599531 | Air Seal, Rh |
|
- | |||||
| 62 | 06599532 | Air Seal-lh |
|
- | |||||
| 63 | 06594629 | Grommet |
|
- | |||||
| 66 | 08000456 | Spacer Baffle Plate |
|
- | |||||
| 67 | 3161215 | Screw Baffle Plate |
|
- | |||||
| 68 | F000012236 | Shield Light Screw |
|
- | |||||
| 69 | 08037401 | Retainer Harness |
|
$ 2.85 | |||||
| 70 | 09950853 | Screw, Knob |
|
- | |||||
| 74 | F83897 | Condenser (not Original Equipment-service Replacement On |
|
- | |||||
| 75 | 09948923 | Bracket |
|
- | |||||
| 76 | 08037851 | Screw |
|
$ 3.57 | |||||
| 77 | 08002706 | Signal |
|
- | |||||
| 80 | F300134 | Shield |
|
- | |||||
| 81 | 3200989 | Baffle |
|
- | |||||
| 82 | 08037961 | Thermostat |
|
- | |||||
| 83 | 06599543 | Cover |
|
- | |||||
| 84 | 08013197 | Knob |
|
- | |||||
| 85 | 3916020 | Compressor |
|
- | |||||
| 86 | 3204568 | Overload |
|
- | |||||
| 87 | 3204565 | Relay |
|
- | |||||
| 88 | 3006411 | Cover |
|
- | |||||
| 89 | 3006412 | Clamp |
|
- | |||||
| 91 | 08002681 | Grommet (4) |
|
- | |||||
| 92 | 06594529 | Sleeve (3) |
|
- | |||||
| 93 | 08002679 | Screw (3) |
|
- | |||||
| 94 | 08013201 | Harness |
|
- | |||||
| 96 | G136117 | Receptacle |
|
- | |||||
| 97 | 3091423 | Bulb |
|
- | |||||
| 98 | 08037962 | Switch |
|
- | |||||
| 14A | 3205520 | Fan Blade |
|
- | |||||
| 3A | 06599546 | Spacer-support, Evaporator |
|
- | |||||
| 84A | 06599553 | Clip, Wires |
|
- |
