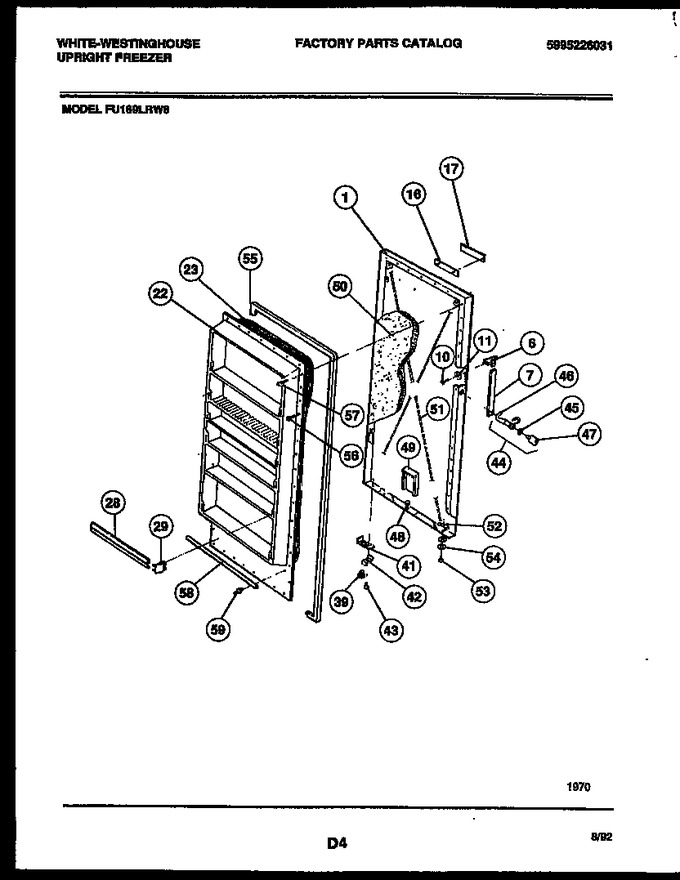

02 - Door Parts


03 - Cabinet Parts


04 - System And Electrical Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300129886		Panel-door (white)		Appelez-nous	-
6	08016581		Handle-end Cap (2)		Appelez-nous	-
7	3200979		Handle		Appelez-nous	-
10	08016582		Screw (2)		Appelez-nous	-
11	08016593		Washer (2)		Appelez-nous	-
16	5303288341		Frame		Appelez-nous	-
17	3200988		Insert-nameplate		Appelez-nous	-
22	5312888264		Panel-inner (white)		Appelez-nous	-
23	09950831		Insulation		Appelez-nous	-
28	3200981		Shelf-front (5)		Appelez-nous	-
29	5309948967		End Cap-rh (5)		Appelez-nous	-
39	5303210403		Bearing, Bottom		Appelez-nous	-
41	5300091170		Stop		Appelez-nous	-
42	08016354		Stop-door				$ 36.07
43	08005520		Screw-door Stop		Appelez-nous	-
44	5300190358		Lock-complete		Appelez-nous	-
45	5300114366		Washer		Appelez-nous	-
46	3202005		Lock Hook		Appelez-nous	-
47	08037402		Key		Appelez-nous	-
48	09950074		Valve (2)		Appelez-nous	-
49	5300128421		Air Duct		Appelez-nous	-
50	3007739		Insulation		Appelez-nous	-
51	08037415		Wire, Adjusting (2)		Appelez-nous	-
52	05879859		Bracket		Appelez-nous	-
53	5300057906		Screw (2)		Appelez-nous	-
54	09950839		Washer		Appelez-nous	-
55	3206254		Gasket-door-gray		Appelez-nous	-
56	3161215		Screw (22)		Appelez-nous	-
57	08009384		Screw (24)		Appelez-nous	-
58	08016356		Gasket		Appelez-nous	-
59	3091422		Clip (5)		Appelez-nous	-
29A	5309948968		End Cap-lh (5)		Appelez-nous	-
39A	06593364		Bearing Top		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
