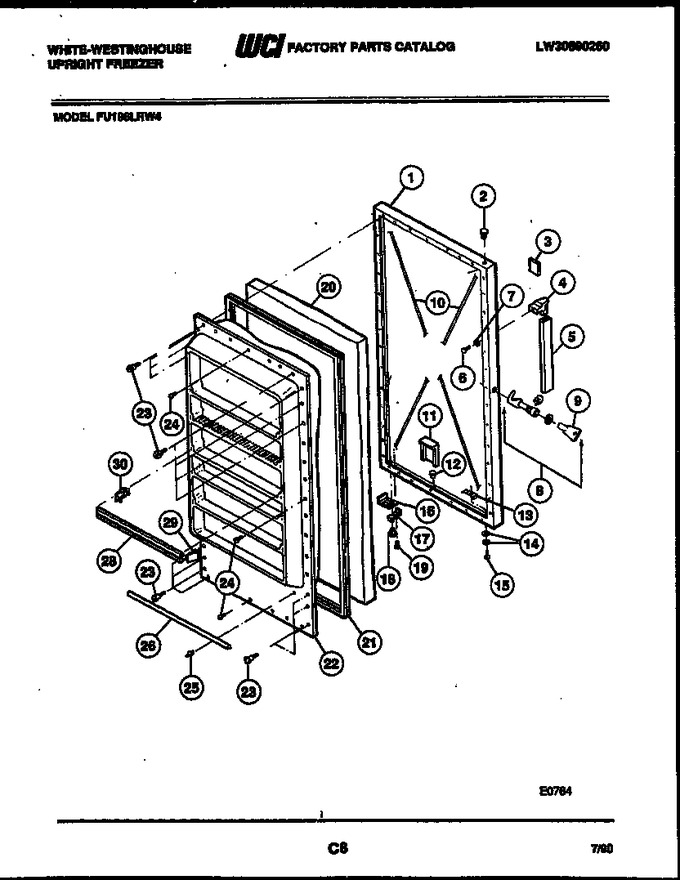

02 - Door Parts
03 - Cabinet Parts
04 - System And Electrical Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | F129884-S | Panel-door |
|
- | |||||
| 2 | F84893 | Bearing, Top |
|
- | |||||
| 3 | F124668 | Nameplate |
|
- | |||||
| 4 | F124855 | End Cap-top & Btm |
|
- | |||||
| 5 | 3200979 | Handle |
|
- | |||||
| 6 | F124857 | Screw |
|
- | |||||
| 7 | F52839 | Washer |
|
- | |||||
| 8 | G190358 | Lock-complete |
|
- | |||||
| 9 | F115646 | Key |
|
- | |||||
| 10 | F129669 | Wire |
|
- | |||||
| 11 | F128421 | Air Duct |
|
- | |||||
| 12 | F117926 | Valve |
|
- | |||||
| 13 | F57880 | Bracket |
|
- | |||||
| 14 | F119827 | Washer |
|
- | |||||
| 15 | F57906 | Screw |
|
- | |||||
| 16 | F91170 | Reinforcement |
|
- | |||||
| 17 | F124623 | Stop-door |
|
- | |||||
| 18 | 5303210403 | Bearing, Bottom |
|
- | |||||
| 19 | F121387 | Screw |
|
- | |||||
| 20 | F116277 | Insulation |
|
- | |||||
| 21 | 3201004 | Gasket Door (gray) |
|
- | |||||
| 22 | F124697-64 | Inner Panel |
|
- | |||||
| 23 | F124860 | Screw (24) |
|
- | |||||
| 24 | F54679 | Screw (22) |
|
- | |||||
| 25 | F300792 | Rivet |
|
- | |||||
| 26 | F99438 | Gasket |
|
- | |||||
| 28 | 3201003 | Front Shelf Narrow |
|
- | |||||
| 29 | 5309948967 | End Cap Rh |
|
- | |||||
| 30 | 5309948968 | End Cap Lh |
|
- | |||||
| 3A | 3201002 | Insert (non-illustrated) |
|
- |
