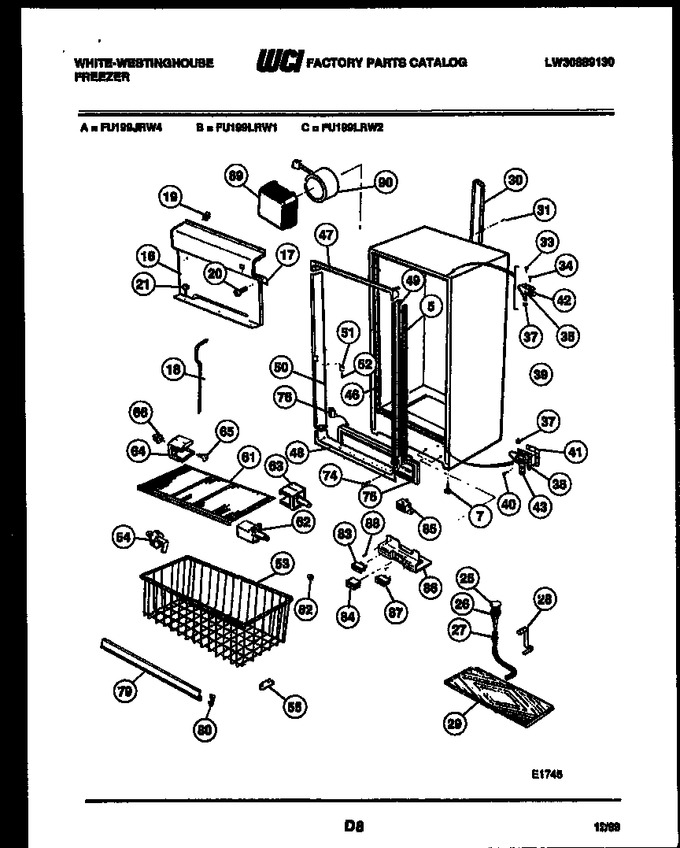

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Door Parts
03 - Cabinet Parts
04 - System And Automatic Defrost Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 09950831 | Insulation |
|
- | |||||
| 7 | 3205540 | Leveler (4) |
|
- | |||||
| 16 | 06599550 | Cover |
|
- | |||||
| 17 | 06599547 | Spacer |
|
- | |||||
| 18 | 06599551 | Gasket |
|
- | |||||
| 19 | 09948978 | Nut (6) |
|
- | |||||
| 20 | 3161215 | Screw - (6) |
|
- | |||||
| 21 | 3161233 | Screwl (3) |
|
- | |||||
| 25 | 08037403 | Screen |
|
- | |||||
| 26 | 08005500 | Sleeve |
|
- | |||||
| 27 | 08037416 | Tube |
|
- | |||||
| 28 | 06594637 | Clip |
|
- | |||||
| 29 | 08016387 | Pan |
|
- | |||||
| 30 | F91583-S | Guard |
|
- | |||||
| 31 | 06594661 | Screw |
|
- | |||||
| 33 | 06593898 | Screw |
|
- | |||||
| 34 | 08037848 | Screw-rear (2) |
|
- | |||||
| 35 | 06593894 | Plate |
|
- | |||||
| 37 | 08016490 | Bearing-bottom |
|
- | |||||
| 37 | 06593364 | Bearing Top |
|
- | |||||
| 38 | 08005499 | Gasket |
|
- | |||||
| 39 | 08016353 | Closer |
|
- | |||||
| 40 | 3205738 | Screw |
|
- | |||||
| 41 | 06594550 | Plate |
|
- | |||||
| 42 | 08037946 | Hinge-top |
|
- | |||||
| 43 | 06594549 | Hinge |
|
- | |||||
| 46 | 06594680 | Clip, Breaker |
|
- | |||||
| 47 | 06594561 | Moulding |
|
- | |||||
| 48 | 06594562 | Moulding |
|
- | |||||
| 49 | F300737 | Moulding |
|
- | |||||
| 50 | 06599858 | Moulding |
|
- | |||||
| 51 | 09949966 | Latch |
|
- | |||||
| 52 | 3161215 | Screw (2) |
|
- | |||||
| 53 | 08010202 | Basket |
|
- | |||||
| 54 | 09948791 | Stop, Basket |
|
- | |||||
| 55 | 08009560 | Glide (4) |
|
$ 35.25 | |||||
| 61 | 08037996 | Shelf-upper (3) |
|
- | |||||
| 62 | 06594706 | Peg-front Rh (5) |
|
- | |||||
| 63 | 06594584 | Support |
|
- | |||||
| 64 | 06594585 | Support-rear (2) |
|
- | |||||
| 65 | 08005520 | Screw-door Stop |
|
- | |||||
| 66 | 06594537 | Insert, Nut |
|
- | |||||
| 74 | F125039 | Pin (2) |
|
- | |||||
| 75 | 3200983 | Apron |
|
- | |||||
| 76 | F118003 | Bumper (2) |
|
- | |||||
| 79 | 3200980 | Handle |
|
- | |||||
| 80 | 09950862 | End Cap |
|
- | |||||
| 82 | 05878546 | Spacer, Condenser |
|
- | |||||
| 61A | 08037997 | Shelf-lower (2) |
|
- | |||||
| 62A | 06594707 | Peg-front Lh (5) |
|
- |
