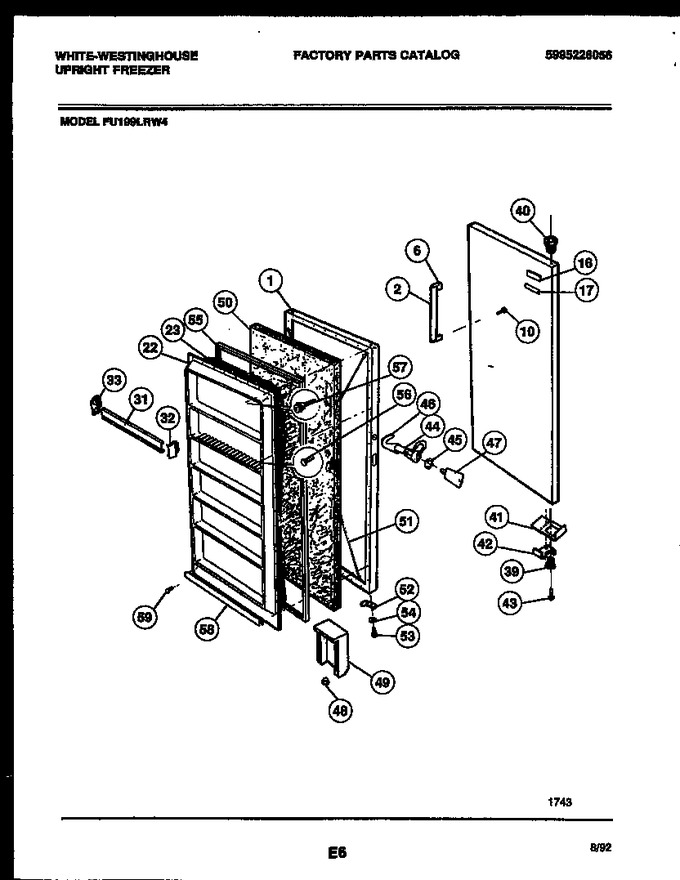

02 - Door Parts


03 - Cabinet Parts


04 - System And Electrical Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216011500		Panel-door (white)		Appelez-nous	-
2	3201007		Handle		Appelez-nous	-
6	5300124647		Cap-top		Appelez-nous	-
10	3161233		Screw		Appelez-nous	-
16	5303288341		Frame		Appelez-nous	-
17	3200988		Nameplate		Appelez-nous	-
22	216012701		Pane-inner (white)		Appelez-nous	-
23	09950831		Insulation		Appelez-nous	-
31	3201008		Shelf-front (5)		Appelez-nous	-
32	09948970		End Cap-rh (5)		Appelez-nous	-
33	09948971		End Cap-lh		Appelez-nous	-
39	5303210403		Bearing, Bottom		Appelez-nous	-
40	06593364		Bearing Top		Appelez-nous	-
41	5300091170		Stop Reinforcement		Appelez-nous	-
42	08016354		Stop-door				$ 36.07
43	08005520		Screw-door Stop		Appelez-nous	-
44	5303925107		Lock		Appelez-nous	-
45	5300114366		Washer		Appelez-nous	-
46	216013800		Hook		Appelez-nous	-
47	297147700		Key   (Replaces: 5308037402)			Immediately	$ 7.57
48	09950074		Vent (2)		Appelez-nous	-
49	5303212700		Duct		Appelez-nous	-
50	3007739		Insulation		Appelez-nous	-
51	08037981		Wire		Appelez-nous	-
52	05879859		Bracket		Appelez-nous	-
53	5300057906		Screw (2)		Appelez-nous	-
54	09950839		Washer		Appelez-nous	-
55	3206259		Gasket-gray		Appelez-nous	-
56	3161215		Screw (22)		Appelez-nous	-
57	08009384		Screw (24)		Appelez-nous	-
58	5308016356		Gasket		Appelez-nous	-
59	3091422		Clip (5)		Appelez-nous	-
6A	5300124648		Cap-bottom		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
