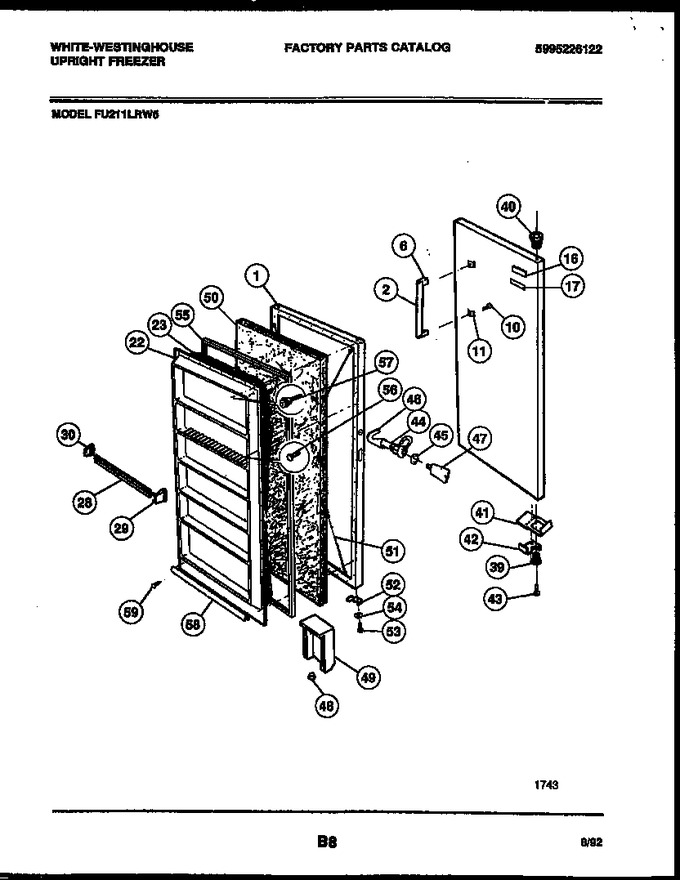

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303925051		Panel-white		Appelez-nous	-
2	3200979		Handle		Appelez-nous	-
6	5308016581		End Cap (2)				$ 18.45
10	08016582		Screw (2)		Appelez-nous	-
11	08016593		Washer (2)		Appelez-nous	-
16	5303288341		Frame		Appelez-nous	-
17	3201002		Nameplate		Appelez-nous	-
22	216012801		Panel-inner (white)		Appelez-nous	-
23	09950831		Insulation		Appelez-nous	-
28	3201003		Front (6)		Appelez-nous	-
29	5309948967		End Cap Rh		Appelez-nous	-
30	5309948968		End Cap Lh		Appelez-nous	-
39	5303210403		Bearing, Bottom		Appelez-nous	-
40	06593364		Bearing Top		Appelez-nous	-
41	5300091170		Stop		Appelez-nous	-
42	08016354		Stop				$ 36.07
43	08005520		Screw-door Stop		Appelez-nous	-
44	5303925107		Lock-complete		Appelez-nous	-
45	5300114366		Washer		Appelez-nous	-
46	216013800		Hook		Appelez-nous	-
47	297147700		Key   (Replaces: 5308037402)			Immediately	$ 7.57
48	09950074		Vent (2)		Appelez-nous	-
49	5303212700		Duct		Appelez-nous	-
50	3007739		Insulation		Appelez-nous	-
51	08037986		Rod (2)		Appelez-nous	-
52	05879859		Bracket		Appelez-nous	-
53	530057906		Screw (2)		Appelez-nous	-
54	09950839		Washer (2)		Appelez-nous	-
55	3206264		Gasket (gray)		Appelez-nous	-
56	3161215		Screw (26)		Appelez-nous	-
57	08009384		Screw (24)		Appelez-nous	-
58	08016356		Gasket		Appelez-nous	-
59	3091422		Clip (5)		Appelez-nous	-
