02 - Cabinet Parts


03 - Door Parts


04 - System And Electrical Parts

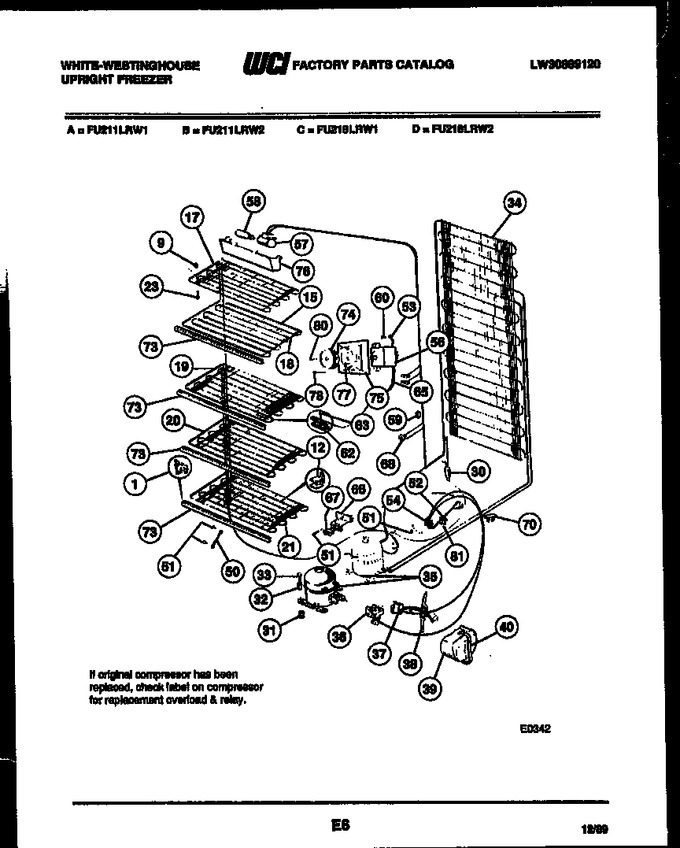

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	297001600		Support-front Lh (4)   (Replaces: 3091418)				$ 18.08
9	F81445		Spacer (2)		Appelez-nous	-
12	09949960		Support, Rear		Appelez-nous	-
15	08010744		Heat Exchanger		Appelez-nous	-
17	08037983		Top Grid		Appelez-nous	-
18	08037975		First Shelf		Appelez-nous	-
19	08010741		Second Shelf		Appelez-nous	-
20	08037984		Third Shelf		Appelez-nous	-
21	08037977		Bottom Shelf		Appelez-nous	-
23	08013446		Screw (3)		Appelez-nous	-
30	08000027		Filter		Appelez-nous	-
31	08002681		Grommet (4)		Appelez-nous	-
32	06594529		Sleeve (3)		Appelez-nous	-
33	08002679		Screw (3)		Appelez-nous	-
34	F83897		Condenser (not Original Equipment. Service Replacement		Appelez-nous	-
35	3916020		Compressor		Appelez-nous	-
36	3204565		Relay		Appelez-nous	-
37	3204568		Overload		Appelez-nous	-
39	3006411		Cover		Appelez-nous	-
40	3006412		Clamp		Appelez-nous	-
50	06594651		Wire, Ground		Appelez-nous	-
51	08037851		Screw (2)				$ 3.57
52	3017718		Clamp		Appelez-nous	-
53	F125347		Wire		Appelez-nous	-
54	3201036		Harness		Appelez-nous	-
56	08016351		Thermostat		Appelez-nous	-
57	G136117		Receptacle		Appelez-nous	-
58	3091423		Bulb		Appelez-nous	-
59	08037401		Retainer (3)				$ 2.85
60	08009412		Screw		Appelez-nous	-
62	08037931		Clamp		Appelez-nous	-
63	F52943		Screw		Appelez-nous	-
65	08037932		Sleeve		Appelez-nous	-
66	09948923		Bracket		Appelez-nous	-
67	08002706		Signal		Appelez-nous	-
68	08037962		Switch		Appelez-nous	-
70	06599553		Clip, Wires		Appelez-nous	-
73	08037978		Trim (3)		Appelez-nous	-
74	3200985		Knob		Appelez-nous	-
75	08016370		Housing		Appelez-nous	-
76	3200986		Shield		Appelez-nous	-
77	08003539		Screw (2)		Appelez-nous	-
78	08009412		Screw		Appelez-nous	-
80	09950853		Screw, Knob		Appelez-nous	-
81	3161215		Screw		Appelez-nous	-
1A	297001500		Support Front Rh (4) (non-illustrated)   (Replaces: 08037928)				$ 18.08
9A	08037929		Spacer (non-illustrated)		Appelez-nous	-
