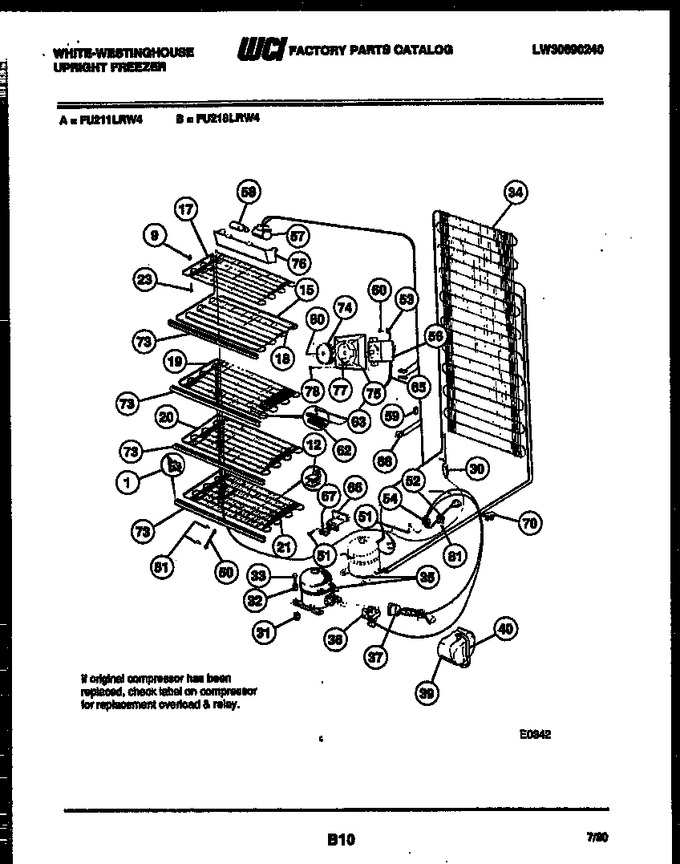

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Door Parts
03 - Cabinet Parts
04 - System And Electrical Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 297001600 | Support-front Lh (4) (Replaces: 3091418) |
|
$ 18.08 | |||||
| 9 | F81445 | Spacer (2) |
|
- | |||||
| 12 | 09949960 | Support, Rear |
|
- | |||||
| 15 | 08010744 | Heat Exchanger |
|
- | |||||
| 17 | 08037983 | Top Grid |
|
- | |||||
| 18 | 08037975 | First Shelf |
|
- | |||||
| 19 | 08010741 | Second Shelf |
|
- | |||||
| 20 | 08037984 | Third Shelf |
|
- | |||||
| 21 | 08037977 | Bottom Shelf |
|
- | |||||
| 23 | 08013446 | Screw (3) |
|
- | |||||
| 30 | 08000027 | Drier |
|
- | |||||
| 31 | 08002681 | Grommet (4) |
|
- | |||||
| 32 | 06594529 | Sleeve (3) |
|
- | |||||
| 33 | 08002679 | Screw (3) |
|
- | |||||
| 34 | F83897 | Condenser (not Original Equipment-service Replacement On |
|
- | |||||
| 35 | 5303916411 | Compressor |
|
- | |||||
| 36 | 5303017753 | Relay |
|
- | |||||
| 37 | 5308037789 | Overload |
|
- | |||||
| 39 | 3006411 | Cover |
|
- | |||||
| 40 | 3006412 | Clamp |
|
- | |||||
| 50 | 06594651 | Wire, Ground |
|
- | |||||
| 51 | 08037851 | Screw (2) |
|
$ 3.57 | |||||
| 52 | 3017718 | Clamp |
|
- | |||||
| 53 | F125347 | Wire |
|
- | |||||
| 54 | 3201036 | Harness |
|
- | |||||
| 56 | 08016351 | Cold Control |
|
- | |||||
| 57 | 5300136117 | Socket |
|
$ 52.46 | |||||
| 58 | 3091423 | Bulb |
|
- | |||||
| 59 | 08037401 | Retainer (3) |
|
$ 2.85 | |||||
| 60 | 08009412 | Screw |
|
- | |||||
| 62 | 08037931 | Clamp |
|
- | |||||
| 63 | F52943 | Screw |
|
- | |||||
| 65 | 08037932 | Sleeve |
|
- | |||||
| 66 | 09948923 | Bracket |
|
- | |||||
| 67 | 08002706 | Signal |
|
- | |||||
| 68 | 08037962 | Switch |
|
- | |||||
| 70 | 06599553 | Clip, Wires |
|
- | |||||
| 73 | 08037978 | Trim (3) |
|
- | |||||
| 74 | 3200985 | Knob |
|
- | |||||
| 75 | 08016370 | Housing |
|
- | |||||
| 76 | 3200986 | Shield Light |
|
- | |||||
| 77 | 08003539 | Screw (2) |
|
- | |||||
| 78 | 08009412 | Screw |
|
- | |||||
| 80 | 09950853 | Screw, Knob |
|
- | |||||
| 81 | 3161215 | Screw |
|
- | |||||
| *32613 | 5303916391 | Capacitor |
|
- | |||||
| 1A | 297001500 | Support Front Rh (4) (non-illustrated) (Replaces: 08037928) |
|
$ 18.08 | |||||
| 9A | 08037929 | Spacer (non-illustrated) |
|
- |
