Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4162386 Ground Wire Appelez-nous -
2 4159072 Nut Appelez-nous -
5 WPW10068250 Screw   (Replaces: 4159230) Special Order $ 3.66

6 4160076 Nut, Heating Element Appelez-nous -
7 4176447 Shell, Tank Upper Appelez-nous -
8 4159824 O-ring Special Order $ 38.57

9 3191376 Element, Heating Appelez-nous -
10 4159825 ``o``, Ring Special Order $ 5.62

11 4176126 Deflector Appelez-nous -
12 4159072 Nut, Mounting Appelez-nous -
13 4176448 Shell, Tank Lower Appelez-nous -
14 3191423 Thermostat Appelez-nous -
15 4159493 Lockwasher Special Order $ 21.02

16 3183057 Knob, Thermostat Appelez-nous -
17 4162641 Fuse, Thermal Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

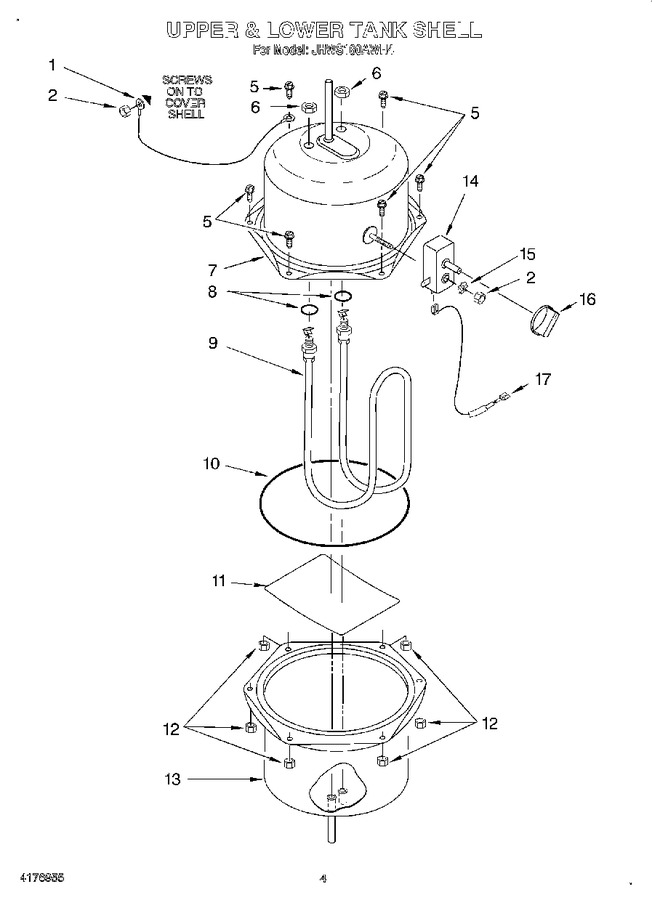

Diagram for JHWS160ACR4
