01 - Cabinet-front
02 - Cabinet-rear
03 - Control Panel
04 - Door

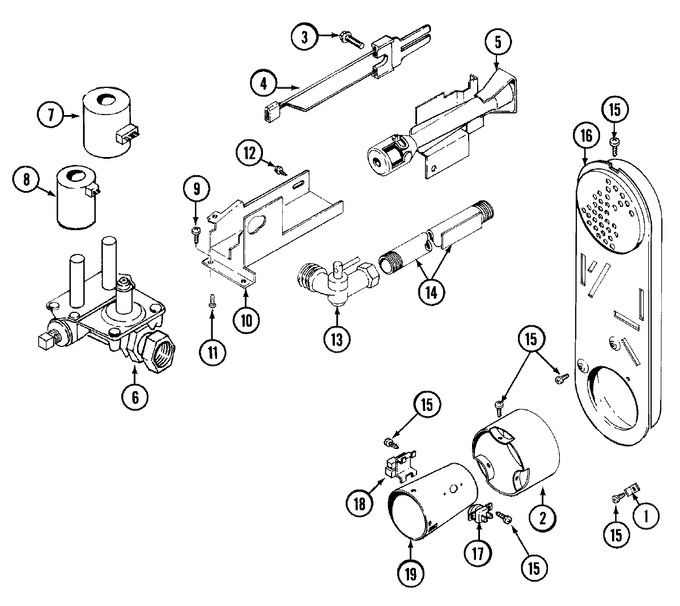

05 - Gas Valve
06 - Motor Drive
07 - Tumbler
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 304953 | Extension F/combustion Cone | 10 |
|
- | ||||
| 2 | Y312890 | Retainer, Heater Chamber | 10 |
|
- | ||||
| 3 | 304971 | Screw | 10 |
|
- | ||||
| 4 | 4391996 | Igniter Assy, Gas Valve (Replaces: 304970) | 10 |
|
Immediately | $ 42.36 | |||
| 5 | WP33002793 | Burner Assy. (Replaces: 33001247) | 10 |
|
$ 161.35 | ||||
| 6 | 33001693 | Cap, Gas Pipe | 10 |
|
- | ||||
| 6 | 33001847 | Valve, Gas | 13 |
|
- | ||||
| 6 | 307927 | Gas Valve - 120v-50hz | 10 |
|
$ 215.29 | ||||
| 7 | WPY307931 | Holding, Booster Coil (Replaces: Y307931) | 10 |
|
$ 104.11 | ||||
| 8 | WP307930 | Secondary Coil (Replaces: 307930) | 10 |
|
$ 95.14 | ||||
| 9 | Y313561 | Screw----na | 10 |
|
$ 5.27 | ||||
| 10 | 314566 | Bracket, Gas Valve | 10 |
|
- | ||||
| 11 | WP90767 | Screw (Replaces: Y313559) | 10 |
|
Immediately | $ 7.04 | |||
| 12 | WP90767 | Screw (Replaces: 314082) | 10 |
|
Immediately | $ 7.04 | |||
| 12 | WP90767 | Screw-gas Valve To Bracket (Replaces: 314568) | 10 |
|
Immediately | $ 7.04 | |||
| 13 | 3406051 | Connector, Angle (Replaces: 33001842) | 14 |
|
$ 90.15 | ||||
| 13 | Y303349 | Shut-off, Gas Valve | 10 |
|
- | ||||
| 14 | Y303383 | Pipe & Bracket Assy. | 10 |
|
- | ||||
| 15 | WP90767 | Screw (Replaces: 211294) | 10 |
|
Immediately | $ 7.04 | |||
| 16 | Y308504 | Inlet Duct Assy. | 10 |
|
- | ||||
| 17 | WP303395 | Thermostat, Hi-limit (gas) (Replaces: 303395) | 10 |
|
Immediately | $ 66.35 | |||
| 18 | WP338906 | Sensor, Radiant (Replaces: Y303377) | 10 |
|
Immediately | $ 46.72 | |||
| 19 | Y308549 | Cone, Combustion | 10 |
|
- |
