02 - Door Parts
03 - Cabinet Parts
04 - System And Electrical Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

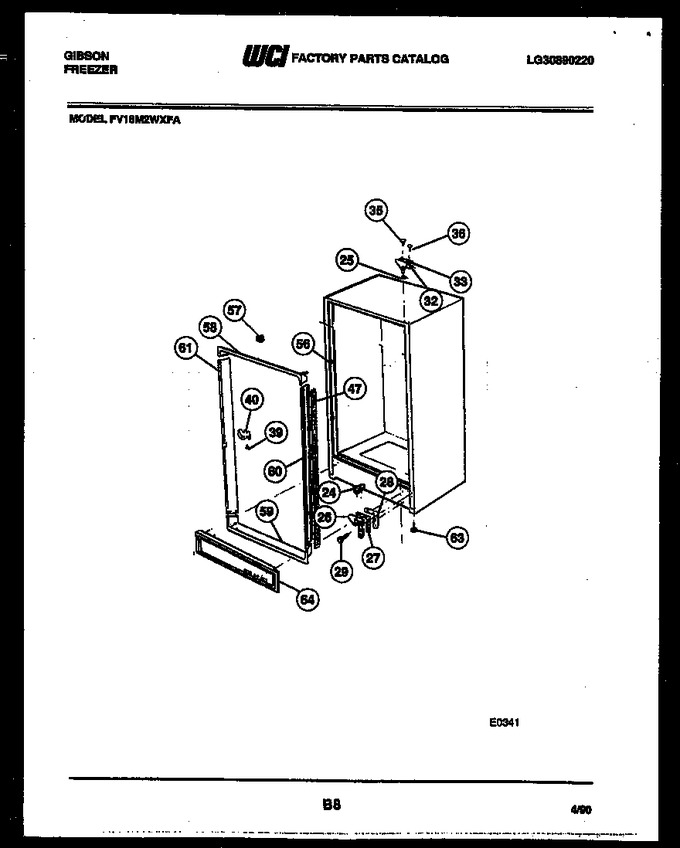

| 24 | F000900253 | Ramp Door Closer |
|
- | |||||
| 25 | 5300057523 | Bearing Hinge (3) |
|
- | |||||
| 26 | 5306594549 | Hinge-bottom |
|
- | |||||
| 27 | 5303207296 | Spacer |
|
- | |||||
| 28 | 06594550 | Plate |
|
- | |||||
| 29 | 154518001 | Screw-bottom Hinge (Replaces: 5303205738) |
|
$ 10.54 | |||||
| 32 | 06593894 | Plate |
|
- | |||||
| 33 | 5308037946 | Hinge-top |
|
$ 56.91 | |||||
| 35 | 06593898 | Screw |
|
- | |||||
| 36 | 08037848 | Screw Top Hinge-rear |
|
- | |||||
| 39 | 216858001 | Screw-latch Catch (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 40 | 5309949966 | Latch-catch |
|
- | |||||
| 47 | 09950831 | Insulation |
|
- | |||||
| 56 | 06594680 | Clip, Breaker |
|
- | |||||
| 57 | 08037937 | Spacer Top Breaker |
|
- | |||||
| 58 | 5308005501 | Breaker Top |
|
- | |||||
| 59 | 5308005502 | Breaker Bottom |
|
- | |||||
| 60 | F121458-64 | Breaker, Hinge |
|
- | |||||
| 61 | 5308005512 | Breaker Lock Side |
|
- | |||||
| 63 | 5303205540 | Leveling Leg (4) |
|
- |
