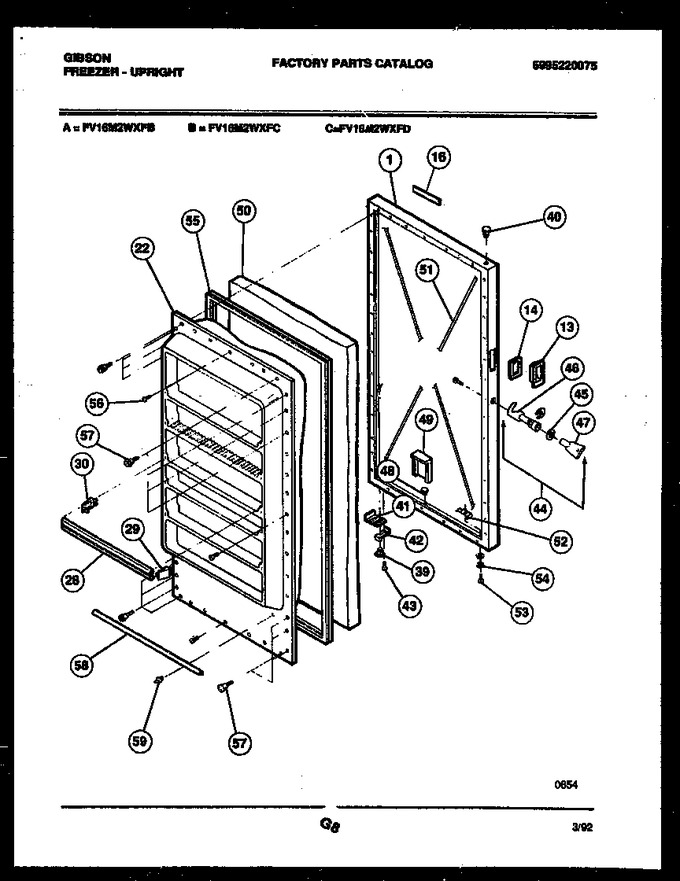

02 - Door Parts
03 - Cabinet Parts
04 - System And Electrical Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | F128673 | Panel-door-white |
|
- | |||||
| 13 | 5300112637 | Handle Recessed |
|
- | |||||
| 14 | 08009392 | Gasket Handle |
|
- | |||||
| 16 | 5303270937 | Nameplate |
|
- | |||||
| 22 | 216012601 | Inner Panel (white) |
|
- | |||||
| 23 | 09950831 | Insulation |
|
- | |||||
| 28 | 3016802 | Shelf Front Narrow (5) |
|
- | |||||
| 29 | 5309948967 | End Cap-rh Narrow (5) |
|
- | |||||
| 30 | 5309948968 | End Cap Lh Narrow (5) |
|
- | |||||
| 39 | 5303210403 | Bearing, Bottom |
|
- | |||||
| 40 | 5306593364 | Bearing Top (2) |
|
- | |||||
| 41 | 5300091170 | Reinforcement Dr Stop |
|
- | |||||
| 42 | 08016354 | Stop-door Stop |
|
$ 36.07 | |||||
| 43 | 08005520 | Screw-door Stop |
|
- | |||||
| 44 | 5303925107 | Lock-complete |
|
- | |||||
| 45 | 5300114366 | Washer-lock |
|
- | |||||
| 46 | 216013800 | Lock Hook |
|
- | |||||
| 47 | 297147700 | Key Lock (Replaces: 5308037402) |
|
Immediately | $ 7.57 | ||||
| 48 | 5309950074 | Valve Breather (2) |
|
$ 12.48 | |||||
| 49 | 5300128421 | Air Duct Breather |
|
- | |||||
| 50 | 5303007739 | Insulation, Door |
|
- | |||||
| 51 | 08037953 | Wire Adjusting (2) |
|
- | |||||
| 52 | 05879859 | Bracket |
|
- | |||||
| 53 | 5300057906 | Screw, Bracket (2) |
|
- | |||||
| 54 | 09950839 | Washer, Bracket (2) |
|
- | |||||
| 55 | 3206246 | Gasket Door (white) |
|
$ 238.51 | |||||
| 56 | 216858001 | Screw, Panel (26) (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 57 | 08009384 | Screw-panel (16) |
|
- | |||||
| 58 | 06594682 | Gasket |
|
- | |||||
| 59 | 5303091422 | Rivet-gasket (5) |
|
- |
