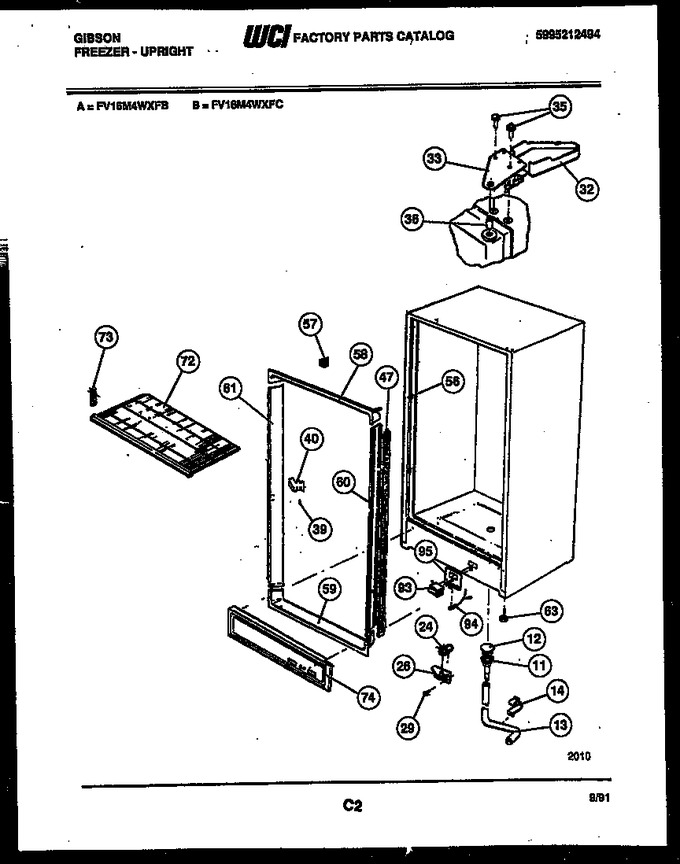

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
12	5306593887		Plug-drain		Appelez-nous	-
13	5308037944		Hose Drain		Appelez-nous	-
14	06593405		Clamp		Appelez-nous	-
24	5303210424		Ramp, Door Closer		Appelez-nous	-
26	5303210383		Hinge, Bottom		Appelez-nous	-
29	154518001		Screw-hinge (2)   (Replaces: 5303205738)				$ 10.54
32	5303210384		Cover-hinge (white)		Appelez-nous	-
33	5303210385		Hinge Top		Appelez-nous	-
35	5303210386		Screw-hinge (top)		Appelez-nous	-
36	5303210387		Pin-hinge		Appelez-nous	-
39	216858001		Screw-latch Catch   (Replaces: 5303161215)			Immediately	$ 10.85
40	5309949966		Latch-catch		Appelez-nous	-
47	09950831		Insulation		Appelez-nous	-
56	06594680		Clip, Breaker		Appelez-nous	-
57	08037937		Spacer Top Breaker		Appelez-nous	-
58	5308005501		Breaker Top		Appelez-nous	-
59	5308005502		Breaker Bottom		Appelez-nous	-
60	F121458-64		Breaker, Hinge		Appelez-nous	-
61	5308005512		Breaker Lock Side		Appelez-nous	-
63	5303205540		Leveling Leg (4)		Appelez-nous	-
72	5300121320		Dry Shelf		Appelez-nous	-
73	08016352		Support-dry Self (5)		Appelez-nous	-
93	5303210722		Switch-rapid Freeze		Appelez-nous	-
94	3200895		Signal Light-rapid Freeze		Appelez-nous	-
95	5303210723		Label-switch & Indicator		Appelez-nous	-
