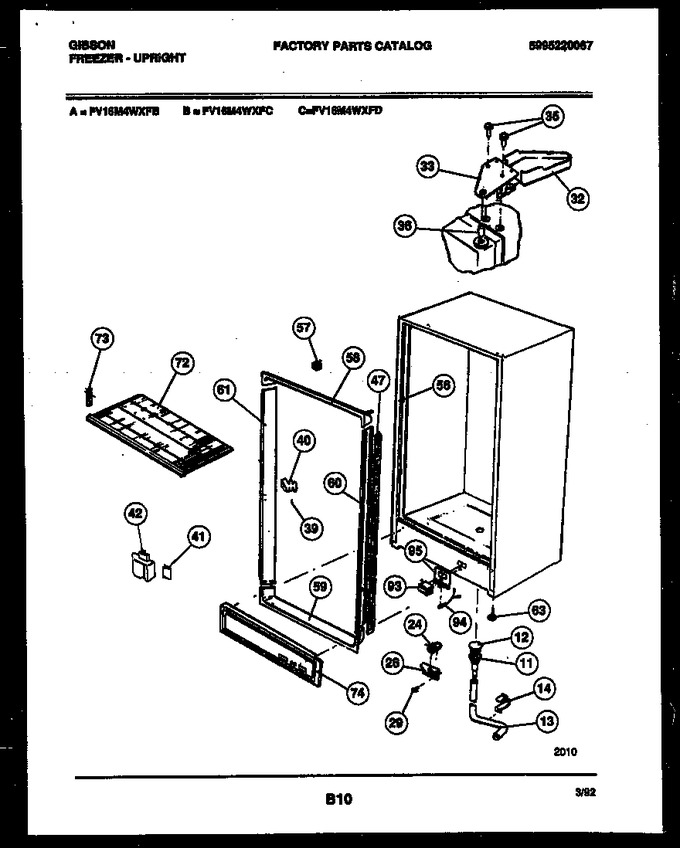

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304511843 | Drain (Replaces: 5308005500) |
|
$ 13.74 | |||||
| 12 | 5306593887 | Plug-drain |
|
- | |||||
| 13 | 5308037944 | Hose Drain |
|
- | |||||
| 14 | 06593405 | Clamp |
|
- | |||||
| 24 | 5303210424 | Ramp, Door Closer |
|
- | |||||
| 26 | 5303210383 | Hinge, Bottom |
|
- | |||||
| 29 | 154518001 | Screw-hinge (2) (Replaces: 5303205738) |
|
$ 10.54 | |||||
| 32 | 5303212912 | Cover, Hinge-white |
|
- | |||||
| 33 | 5303212935 | Hinge, Top |
|
- | |||||
| 35 | 5303212937 | Screw-hinge |
|
- | |||||
| 39 | 216858001 | Screw-latch Catch (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 41 | 216013700 | Clip Lock |
|
- | |||||
| 42 | 216013600 | Support, Lock |
|
- | |||||
| 47 | 09950831 | Insulation |
|
- | |||||
| 56 | 06594680 | Clip, Breaker |
|
- | |||||
| 57 | 08037937 | Spacer Top Breaker |
|
- | |||||
| 58 | 5308005501 | Breaker Top |
|
- | |||||
| 59 | 5308005502 | Breaker Bottom |
|
- | |||||
| 60 | F121458-64 | Breaker, Hinge |
|
- | |||||
| 61 | 216014100 | Breaker Lock Side |
|
- | |||||
| 63 | 5303205540 | Leveling Leg (4) |
|
- | |||||
| 72 | 5300121320 | Dry Shelf |
|
- | |||||
| 73 | 08016352 | Support-dry Self (5) |
|
- | |||||
| 93 | 5303210722 | Switch-rapid Freeze |
|
- | |||||
| 94 | 3200895 | Signal Light-rapid Freeze |
|
- | |||||
| 95 | 5303210723 | Label-switch & Indicator |
|
- |
