SELECT A DIAGRAM

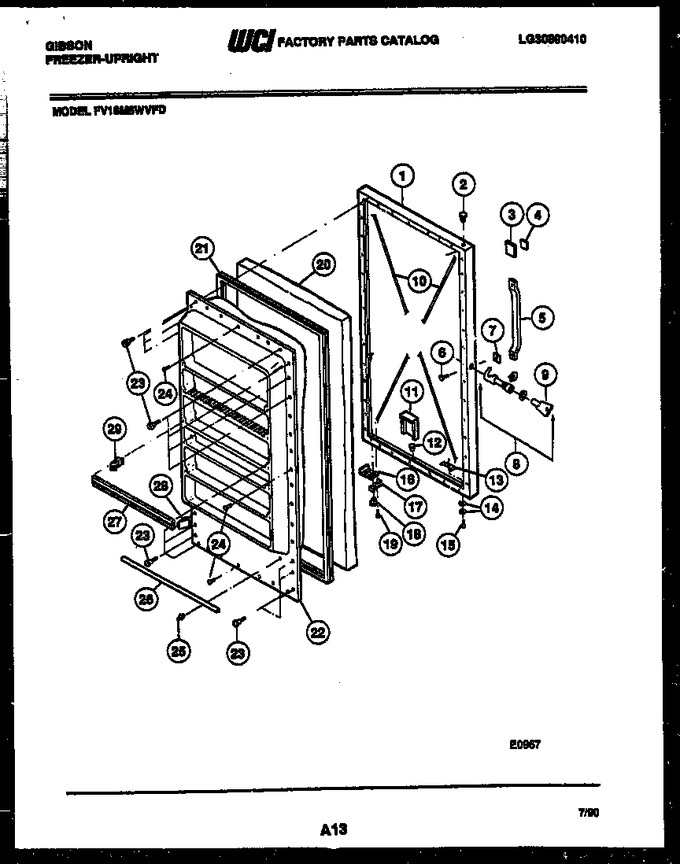

02 - Door Parts
03 - Cabinet Parts
04 - System And Electrical Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | F129289 | Panel-door (white) |
|
- | |||||
| 2 | F84893 | Bearing |
|
- | |||||
| 3 | F128767 | Nameplate |
|
- | |||||
| 4 | F300246 | Insert Nameplate |
|
- | |||||
| 5 | F119165 | Handle Door |
|
- | |||||
| 6 | F111365 | Screw |
|
- | |||||
| 7 | F115980 | Plate |
|
- | |||||
| 8 | 5300190358 | Lock-complete |
|
- | |||||
| 9 | 297147700 | Key (Replaces: 5308037402) |
|
Immediately | $ 7.57 | ||||
| 10 | F129667 | Wire Adj. |
|
- | |||||
| 11 | F128421 | Duct |
|
- | |||||
| 12 | F117926 | Valve Air |
|
- | |||||
| 13 | F57880 | Bracket |
|
- | |||||
| 14 | F119827 | Washer |
|
- | |||||
| 15 | F57906 | Screw |
|
- | |||||
| 16 | F91170 | Reinforcement |
|
- | |||||
| 17 | F124623 | Stop-door |
|
- | |||||
| 18 | 5303210403 | Bearing |
|
- | |||||
| 19 | F121387 | Screw |
|
- | |||||
| 20 | F116277 | Insulation |
|
- | |||||
| 21 | 3206246 | Gasket Door (white) |
|
$ 238.51 | |||||
| 22 | F124566-95 | Inner Panel (white) |
|
- | |||||
| 23 | F124860 | Screw 16 |
|
- | |||||
| 24 | F54679 | Screw (26) |
|
- | |||||
| 25 | F300792 | Rivet |
|
- | |||||
| 26 | F99439 | Gasket |
|
- | |||||
| 27 | F124601 | Front Shelf-narrow |
|
- | |||||
| 28 | F126016 | End Cap-rh |
|
- | |||||
| 29 | F126017 | End Cap-lh |
|
- |
