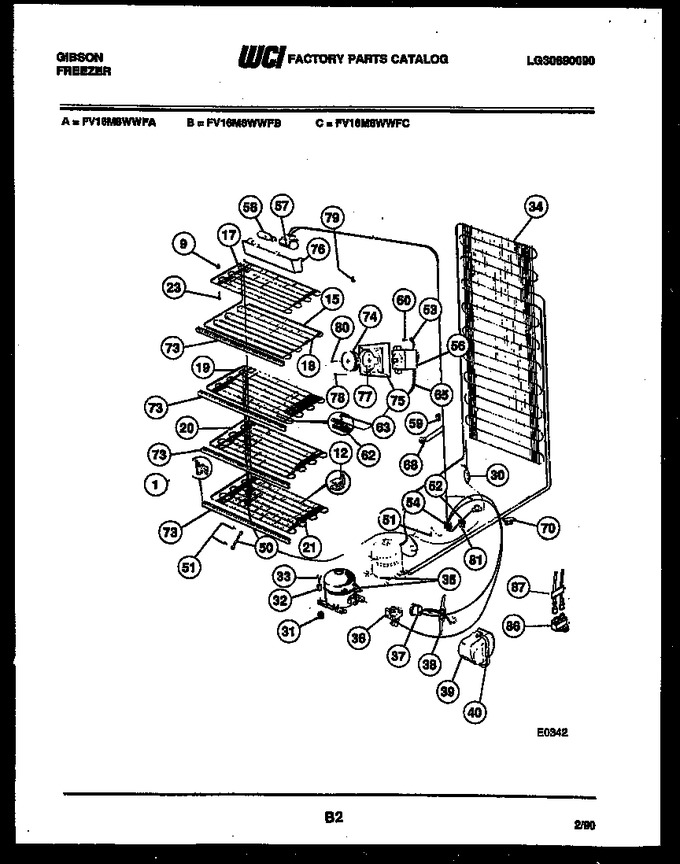

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | F300590 | Support-front Lh (3) |
|
- | |||||
| 9 | F81445 | Spcr-topgrid Front (2) |
|
- | |||||
| 12 | F117447 | Support Rear (6) |
|
- | |||||
| 15 | F125249 | Heat Exchanger |
|
- | |||||
| 17 | F121179 | Top Grid |
|
- | |||||
| 18 | F129785 | First Shelf |
|
- | |||||
| 19 | F129786 | Second Shelf |
|
- | |||||
| 21 | F129807 | Bottom Shelf |
|
- | |||||
| 23 | F126260 | Screw-top Grid (3) |
|
- | |||||
| 30 | F114259 | Dryer |
|
- | |||||
| 31 | 216498900 | Grommet (4) (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 32 | 5306594529 | Sleeve (3) |
|
$ 10.34 | |||||
| 33 | 08002679 | Screw (3) |
|
- | |||||
| 34 | F123788 | Condenser (not Original Equipment. Service Replacement O |
|
- | |||||
| 35 | 5303916020 | Compressor |
|
- | |||||
| 36 | 5303007171 | Relay |
|
- | |||||
| 36 | 5303017753 | Relay |
|
- | |||||
| 36 | 3204565 | Relay |
|
- | |||||
| 37 | 5308037789 | Overload |
|
- | |||||
| 37 | 5303007416 | Overload |
|
- | |||||
| 37 | 3204568 | Overload |
|
- | |||||
| 38 | F300749 | Clip-overload |
|
- | |||||
| 39 | F123392 | Cover Terminal |
|
- | |||||
| 40 | F117108 | Clamp Cover |
|
- | |||||
| 50 | 06594651 | Wire, Ground |
|
- | |||||
| 51 | 08009412 | Screw |
|
- | |||||
| 52 | F116027 | Clamp-cord |
|
- | |||||
| 53 | F125347 | Ground Wire |
|
- | |||||
| 53 | F52943 | Screw-clamp |
|
- | |||||
| 54 | F000128540 | Wiring Harn-w/power Cord |
|
- | |||||
| 56 | F126974 | Cold-control |
|
- | |||||
| 57 | F115515 | Socket |
|
- | |||||
| 58 | 5303091423 | Bulb |
|
- | |||||
| 59 | F112321 | Retainer-harness (3) |
|
- | |||||
| 60 | 08009412 | Screw |
|
- | |||||
| 62 | 08037931 | Clamp-capillary |
|
- | |||||
| 65 | F129728 | Sleeve-cap Tube |
|
- | |||||
| 68 | F300589 | Light Switch |
|
- | |||||
| 70 | F111846 | Cord Clip |
|
- | |||||
| 73 | F300385 | Shelf Trim (3) |
|
- | |||||
| 74 | 08016364 | Knob-control |
|
- | |||||
| 75 | 08016370 | Housing-control |
|
- | |||||
| 76 | F128374 | Shield-light |
|
- | |||||
| 77 | 08003539 | Screw-control |
|
- | |||||
| 78 | F50149 | Screw-cover |
|
- | |||||
| 80 | F110410 | Screw Knob |
|
- | |||||
| 81 | 216858001 | Screw (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 86 | 5303916391 | Run Capacitor |
|
- | |||||
| 87 | 5303091425 | Harness Capacitor |
|
- | |||||
| 1A | F300592 | Support-front Rh (3) (non-illustrated) |
|
- | |||||
| 9A | 08037929 | Spcr-top Grid Rear (non-illustrated) |
|
- |
