SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - System And Electrical Parts

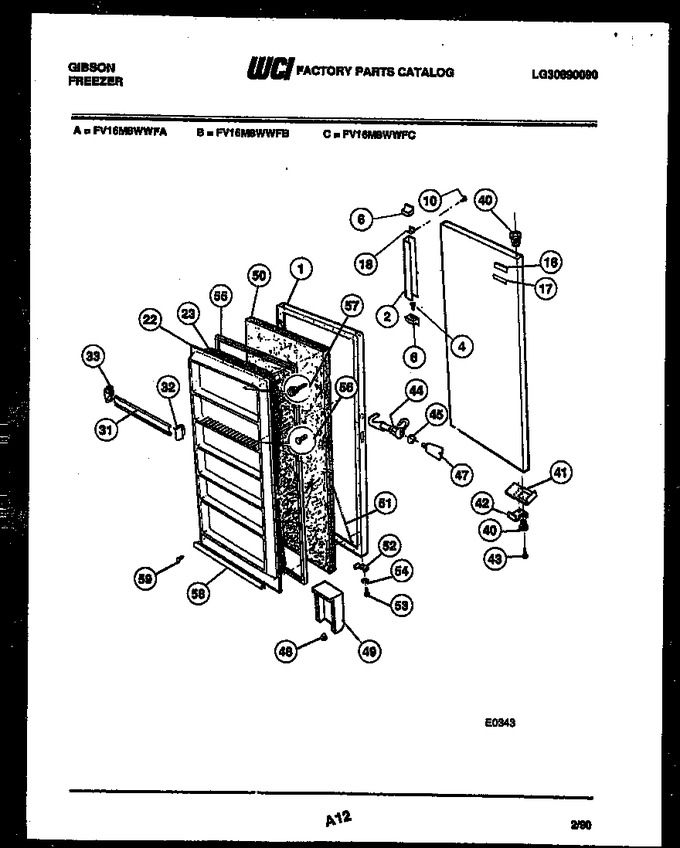

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303208917		Panel-door		Appelez-nous	-
2	F124920		Handle-door		Appelez-nous	-
4	F00001236		Screw		Appelez-nous	-
6	F124647		Handle End Cap-top		Appelez-nous	-
10	F119937		Screw Handle		Appelez-nous	-
16	5303208918		Nameplate Bezel		Appelez-nous	-
17	F300275		Insert Nameplate		Appelez-nous	-
18	F119930		Retainer-handle (2)		Appelez-nous	-
22	F124566-95		Panel-door		Appelez-nous	-
23	09950831		Insulation		Appelez-nous	-
31	5303208919		Shelf-front Wide (5)		Appelez-nous	-
32	F124984		End Cap Rh Wide (5)		Appelez-nous	-
33	F124986		End Cap Lh Wide (5)		Appelez-nous	-
40	F126303		Bearing, Bottom		Appelez-nous	-
41	F91170		Reinforcement, Door Stop		Appelez-nous	-
42	F124623		Stop-door		Appelez-nous	-
43	F121387		Screw, Door Stop (2)		Appelez-nous	-
44	5300190358		Lock-complete		Appelez-nous	-
45	F114366		Washer-lock		Appelez-nous	-
47	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
48	F117926		Valve Breather (2)		Appelez-nous	-
49	F128421		Air Duct Breather		Appelez-nous	-
50	F116277		Insulation Door		Appelez-nous	-
51	F129667		Wire Adjusting (2)		Appelez-nous	-
52	05879859		Bracket		Appelez-nous	-
53	F57906		Screw, Bracket (2)		Appelez-nous	-
54	F119827		Washer Bracket (2)		Appelez-nous	-
55	F129795		Gasket-door		Appelez-nous	-
56	216858001		Screw Door Panel (26)   (Replaces: 5303161215)			Immediately	$ 10.85
57	F124860		Screw-panel (16)		Appelez-nous	-
58	06594682		Gasket		Appelez-nous	-
59	F300792		Rivet-gasket (5)		Appelez-nous	-
40A	5306593364		Bearing-top		Appelez-nous	-
6A	F124648		Handle End Cap-bottom		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
