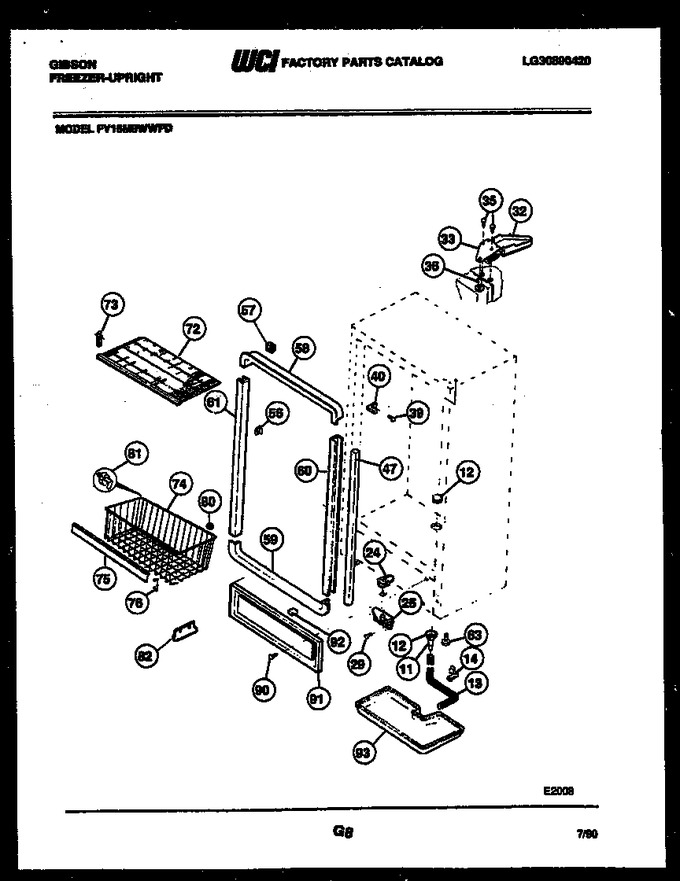

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	F121290		Drain		Appelez-nous	-
12	5306593887		Plug-drain		Appelez-nous	-
13	F129678		Hose-drain		Appelez-nous	-
14	F122718		Clamp Drain Hose		Appelez-nous	-
24	5303210424		Ramp, Door Closer		Appelez-nous	-
26	5303210383		Hinge, Bottom		Appelez-nous	-
29	154518001		Screw-hinge   (Replaces: 5303205738)				$ 10.54
32	5303210384		Cover-hinge (white)		Appelez-nous	-
33	5303210385		Hinge Top		Appelez-nous	-
35	5303210386		Screw-hinge		Appelez-nous	-
36	5303210387		Pin-hinge		Appelez-nous	-
39	216858001		Screw-latch Catch   (Replaces: 5303161215)			Immediately	$ 10.85
40	F117634		Latch Catch		Appelez-nous	-
47	09950831		Insulation		Appelez-nous	-
56	F126240		Clip, Breaker (5)		Appelez-nous	-
57	08037937		Spacer-top Breaker (2)		Appelez-nous	-
58	F121239-64		Breaker, Top		Appelez-nous	-
59	F121241-64		Breaker Bottom		Appelez-nous	-
60	F300738		Breaker Hinge		Appelez-nous	-
61	F121320-64		Breaker, Lock Side		Appelez-nous	-
63	5303205540		Leveling Leg (4)		Appelez-nous	-
72	5303208914		Dry Shelf		Appelez-nous	-
73	F122542		Support - Dry Shelf (5)		Appelez-nous	-
74	F125543		Basket		Appelez-nous	-
75	5303208915		Basket Trim		Appelez-nous	-
76	F119952		End Cap, Basket (2)		Appelez-nous	-
80	5305878546		Basket Stop (2)				$ 7.23
81	F115158		Basket Stop - Liner (2)		Appelez-nous	-
82	5303208916		Glide Basket (4)		Appelez-nous	-
90	F118001		Pin Fastener		Appelez-nous	-
91	F124837		Base Trim		Appelez-nous	-
92	F118003		Bumper (3)		Appelez-nous	-
93	5308016387		Drain Pan (not Original Equipment--customer Purchase Opt		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
