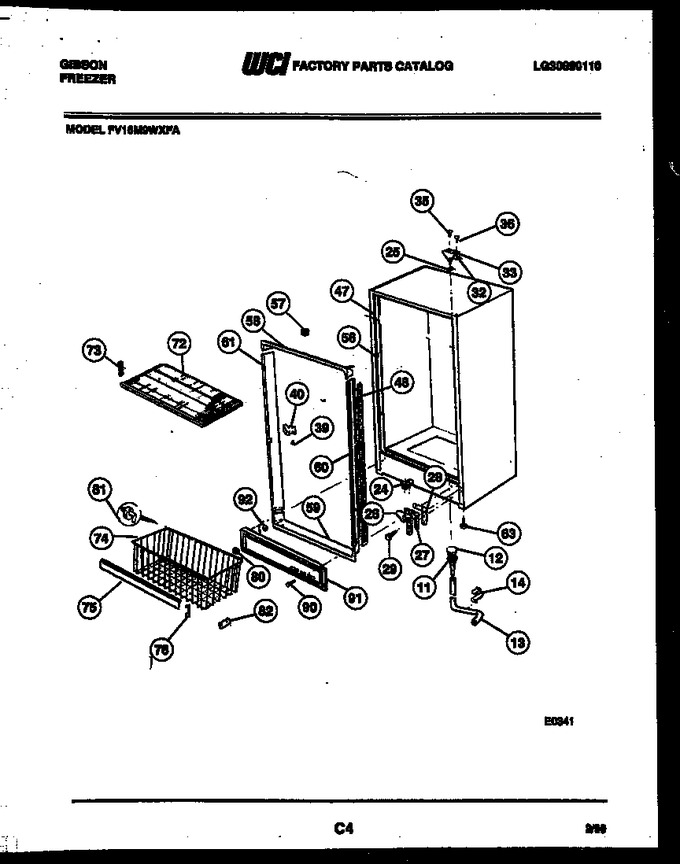

02 - Door Parts
03 - Cabinet Parts
04 - System And Electrical Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | F121290 | Drain |
|
- | |||||
| 12 | 5306593887 | Plug-drain |
|
- | |||||
| 13 | F129678 | Hose-drain |
|
- | |||||
| 14 | F122718 | Clamp |
|
- | |||||
| 24 | F000900253 | Ramp-closer |
|
- | |||||
| 25 | F57523 | Bearing, Hinge (3) |
|
- | |||||
| 26 | 5306594549 | Hinge-bottom |
|
- | |||||
| 27 | F120978 | Spacer |
|
- | |||||
| 28 | 06594550 | Plate |
|
- | |||||
| 29 | 154518001 | Screw (Replaces: 5303205738) |
|
$ 10.54 | |||||
| 32 | 06593894 | Plate |
|
- | |||||
| 33 | F300271 | Hinge Top |
|
- | |||||
| 35 | 06593898 | Screw |
|
- | |||||
| 36 | F300459 | Screw |
|
- | |||||
| 39 | 216858001 | Screw (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 40 | F117634 | Latch |
|
- | |||||
| 47 | 09950831 | Insulation |
|
- | |||||
| 56 | F126240 | Clip, Breaker (5) |
|
- | |||||
| 57 | 08037937 | Spacer |
|
- | |||||
| 58 | F121239-64 | Breaker, Top |
|
- | |||||
| 59 | F121241-64 | Breaker Bottom |
|
- | |||||
| 60 | F300738 | Breaker Hinge |
|
- | |||||
| 61 | F121320-64 | Breaker, Lock Side |
|
- | |||||
| 63 | 5303205540 | Leveling Leg (4) |
|
- | |||||
| 72 | F121420 | Dry Shelf |
|
- | |||||
| 73 | 08016352 | Support Dry Shelf (3) |
|
- | |||||
| 74 | F125542 | Basket |
|
- | |||||
| 75 | 5303208945 | Handle |
|
- | |||||
| 76 | F119952 | End Cap Handle (2) |
|
- | |||||
| 80 | 5305878546 | Basket Stop (2) |
|
$ 7.23 | |||||
| 81 | F115158 | Basket Stop - Liner (2) |
|
- | |||||
| 82 | F123942 | Glide (4) |
|
- | |||||
| 90 | F125039 | Pin Fastener (2) |
|
- | |||||
| 91 | 5303208956 | Toe Grille |
|
- | |||||
| 92 | F118003 | Bumper (2) |
|
- | |||||
| 82A | F129806 | Spacer (4) (non-illustrated) |
|
- |
