SELECT A DIAGRAM
01 - Body/oven
02 - Control Panel
03 - Door/drawer
04 - Gas Controls (electronic)

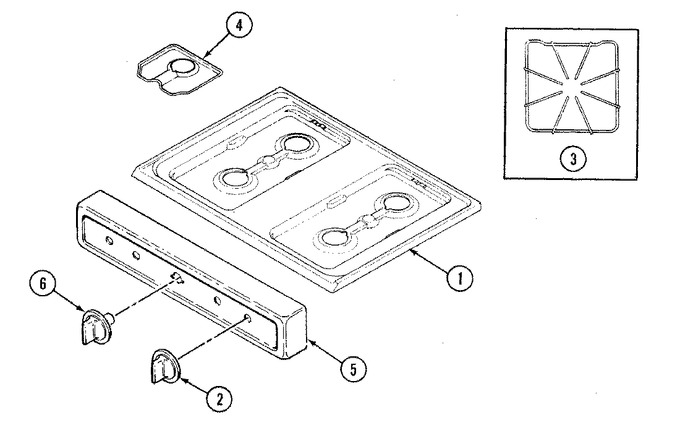

05 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303288566 | Top, Main (wht) (Replaces: 2001F098-81) | 01 |
|
$ 2.12 | ||||
| 2 | 7733P046-60 | Knob, Valve (wht) | 01 |
|
- | ||||
| 3 | 2003W023-14 | Grate (gry) | 01 |
|
- | ||||
| 4 | 1430283 | Drip Bowl Kit (accessory) (Replaces: 5401A433-60) | 01 |
|
$ 95.86 | ||||
| 5 | 7101P311-60 | Screw----na | 01 |
|
- | ||||
| 5 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 5 | 2616F085-81 | Panel, Manifold (wht) | 01 |
|
- | ||||
| 6 | 8113P011-60 | Manual, Use & Care | 01 |
|
- | ||||
| 6 | 7731P078-60 | Knob, Thermostat (wht----na | 01 |
|
- |
