SELECT A DIAGRAM

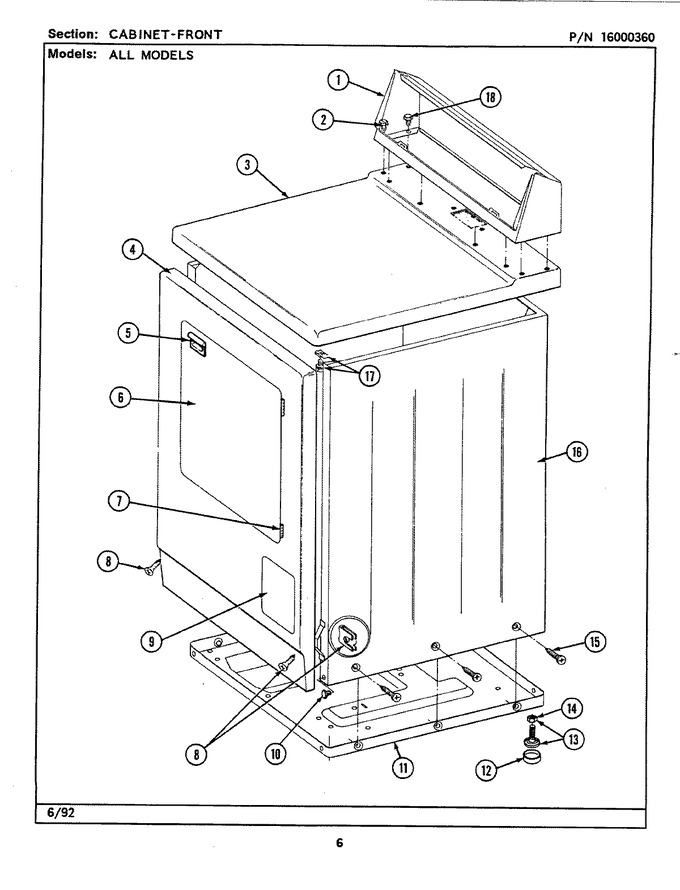

01 - Cabinet-front


02 - Cabinet-rear


03 - Control Panel


04 - Door


05 - Gas Valve


06 - Motor Drive


07 - Thermostats


08 - Tumbler


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	214872		Palnut, End Cap	A0	Appelez-nous	-
2	314184		Back Up Plate	A0	Appelez-nous	-
3	210932		Screw, No.8 X 9/16 Ctsk	A0	Appelez-nous	-
4	207215		End Cap Lh	A0	Appelez-nous	-
5	214894		Fastener, End Cap	A0	Appelez-nous	-
6	308189		Control Panel	A0	Appelez-nous	-
7	315042		Dial Skirt	A0	Appelez-nous	-
8	315041		Knob, Timer	A0	Appelez-nous	-
9	W10155650		Nut   (Replaces: 312273)	A0			$ 12.03
10	215821		Cap, Knob	A0	Appelez-nous	-
11	207216		End Cap Rh	A0	Appelez-nous	-
12	214897		Pad, Control Panel	A0	Appelez-nous	-
13	WP488234		Screw, Switches   (Replaces: 315317)	A0			$ 6.07
14	Y308188		Timer	A0	Appelez-nous	-
15	WP90767		Screw   (Replaces: 211294)	A0		Immediately	$ 7.04
16	204807		Grnd.wire,supp.plte To Top Cvr	A0	Appelez-nous	-
17	WPW10139210		Screw, No.8 X 5/16 Inch   (Replaces: 211168)	A0			$ 6.75
18	Y308205		Buzzer	A0	Appelez-nous	-
19	307304		Temp Control Switch 3 Button	A0	Appelez-nous	-
20	306917		Resistor, Med Temp Gas	A0	Appelez-nous	-
21	307304		Temp Control Switch 3 Button	A0	Appelez-nous	-
22	WP67006908		Screw-temp. Switch To Panel   (Replaces: 213117)	A0		Immediately	$ 7.16
23	307305		Switch Push To Start	A0	Appelez-nous	-
24	WP33001212		Printed Circuit Board   (Replaces: Y308110)	A0			$ 269.69
25	WP3177991		Screw   (Replaces: Y251119)	A0		Immediately	$ 6.47
26	308186		Wire Harness	A0	Appelez-nous	-
26	308505		Harness, Wire	A5	Appelez-nous	-
27	307310		Press Care Switch	A0	Appelez-nous	-
