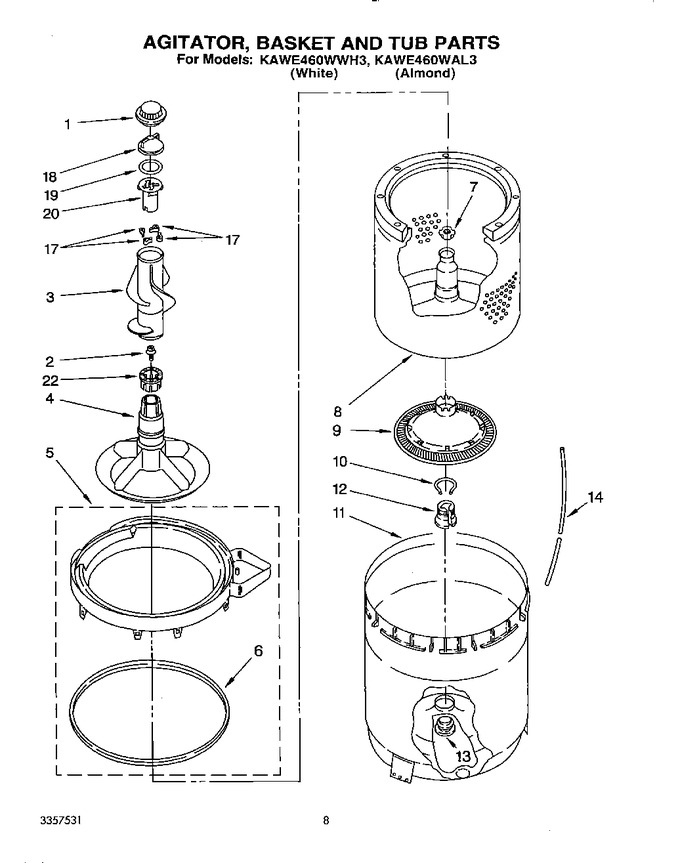

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3355758 | Cap, Agitator (Replaces: 3355760) |
|
Immediately | $ 8.10 | ||||
| 2 | WP358237 | Screw & Washer (5-16-24 X 1) (Replaces: 358237) |
|
Immediately | $ 7.97 | ||||
| 3 | WP3348752 | Clothes Mover (Replaces: 3348916) |
|
$ 220.69 | |||||
| 4 | WP3347288 | Agitator (Replaces: 3348245) |
|
Immediately | $ 124.06 | ||||
| 5 | W10880720 | Tub Ring (Replaces: 63851) |
|
Immediately | $ 200.01 | ||||
| 6 | WP3976308 | Gasket, Tub Ring (Replaces: 63852) |
|
Immediately | $ 25.43 | ||||
| 7 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 8.00 | ||||
| 8 | W10389328 | Basket (Replaces: 3357026) |
|
$ 364.12 | |||||
| 9 | 285868 | Filter, Plate (includes Illus. 10) (Replaces: 62941) |
|
Immediately | $ 19.51 | ||||
| 10 | 62942 | Lock, Filter |
|
$ 7.59 | |||||
| 11 | 63849 | Tub |
|
$ 262.53 | |||||
| 12 | WP389140 | Block, Basket Drive (Replaces: 389140) |
|
Immediately | $ 24.74 | ||||
| 13 | W10814296 | Gasket, Center Post (Replaces: 383727) |
|
Immediately | $ 8.26 | ||||
| 14 | WP353244 | Hose, Pressure Switch (Replaces: 386757) |
|
Immediately | $ 53.94 | ||||
| 17 | 80040 | Dog, Agitator Clutch (4) (Replaces: 387091) |
|
Immediately | $ 3.28 | ||||
| 18 | WPW10074580 | Cap, Barrier (Replaces: 3347290) |
|
Immediately | $ 11.16 | ||||
| 19 | WPW10072840 | Seal, Inner Auger (Replaces: 3348855) |
|
Immediately | $ 7.85 | ||||
| 20 | 285811 | Cam, Agitator (Replaces: 3351001) |
|
Immediately | $ 29.33 | ||||
| 22 | 285587 | Spacer, Thrust (Replaces: 3350389) |
|
Immediately | $ 3.98 |
